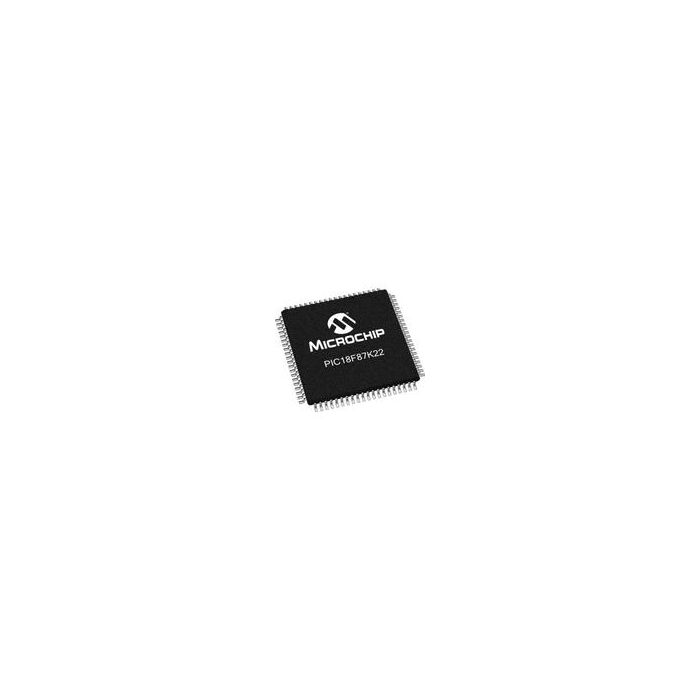

PIC18F87K22-I/PT
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit PIC RISC 128KB Flash 2.5V/3.3V/5V Automotive 80-Pin TQFP Tray |
MCU 8-bit PIC RISC 128KB Flash 2.5V/3.3V/5V Automotive 80-Pin TQFP Tray
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 3
- Inventory 10
- PCNs 67
- GIDEP-Alerts 9
- MaskPart PIC18F87K22IPT%
- IntroductionDate May 28, 2010
Parametry
- ADC Channels 24
- ADC Resolution (bit) 12
- Analog Comparators 3
- CAN 0
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core PIC
- Display Driver N/A
- Ethernet 0
- Family Name PIC18
- I2C 2
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 64
- Maximum Clock Rate (MHz) 64
- Maximum Expanded Memory Size 2MB
- Maximum Power Dissipation (mW) 1000
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 69
- Number of Timers 11
- PWM 10
- Program Memory Size 128KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 4KB
- SPI 2
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- Timers Channels N/A
- Timers Resolution (bit) N/A
- UART 0
- USART 2
- USB 0
- Watchdog 1
