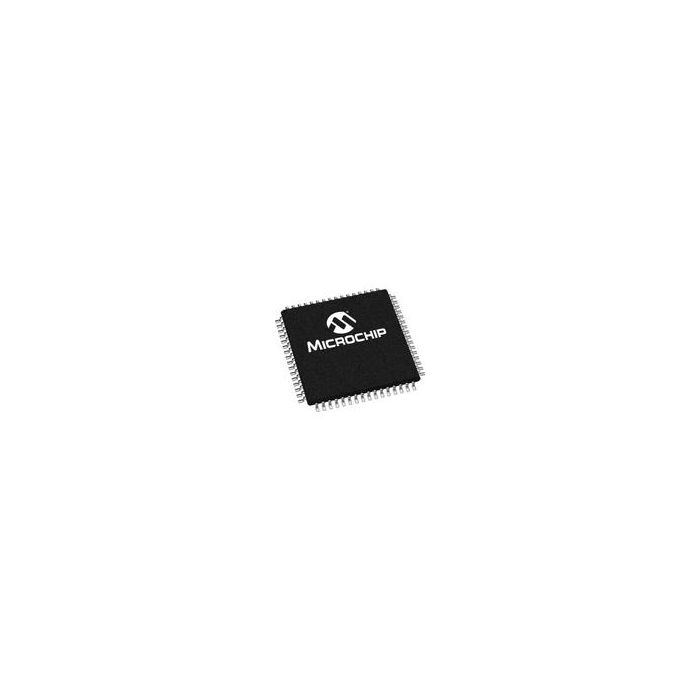

PIC18F67J50I/PT
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit PIC RISC 128KB Flash 1.8V/2.5V/3.3V Automotive 64-Pin TQFP Tray |
MCU 8-bit PIC RISC 128KB Flash 1.8V/2.5V/3.3V Automotive 64-Pin TQFP Tray
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 1
- Inventory 11
- PCNs 60
- GIDEP-Alerts 8
- MaskPart PIC18F67J50IPT%
- IntroductionDate Feb 21, 2007
Parametry
- ADC Channels 8
- ADC Resolution (bit) 10
- Analog Comparators 2
- CAN 0
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core PIC
- Display Driver N/A
- Ethernet 0
- Family Name PIC18
- I2C 2
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI/USART/USB
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 48
- Maximum Clock Rate (MHz) 48
- Maximum Expanded Memory Size 2MB
- Maximum Power Dissipation (mW) 1000
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 49
- Number of Timers 5
- PWM 5
- Program Memory Size 128KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 3904B
- SPI 2
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 0
- USART 2
- USB 1
- Watchdog 1
