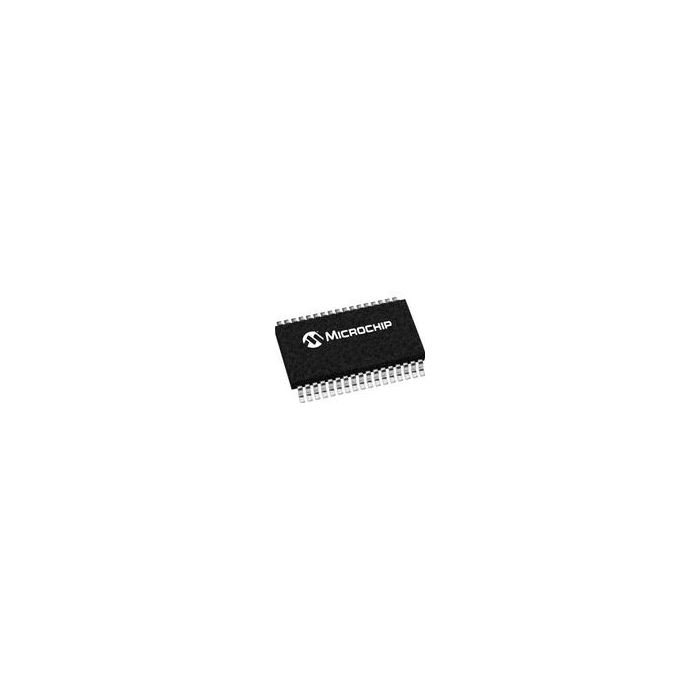

PIC16LF767-I/SS
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit PIC RISC 112KB Flash 2.5V/3.3V/5V 28-Pin SSOP Tube |
MCU 8-bit PIC RISC 112KB Flash 2.5V/3.3V/5V 28-Pin SSOP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 12
- Inventory 4
- PCNs 57
- GIDEP-Alerts 7
- MaskPart PIC16LF767%ISS
- IntroductionDate Nov 07, 2002
Parametry
- ADC Channels 11
- ADC Resolution (bit) 10
- Analog Comparators 2
- CAN 0
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core PIC
- Display Driver N/A
- Ethernet 0
- Family Name PIC16
- I2C 1
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 20
- Maximum Clock Rate (MHz) 20
- Maximum Expanded Memory Size 112KB
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 25
- Number of Timers 3
- PWM 1
- Program Memory Size 112KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 368B
- SPI 1
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 0
- USART 1
- USB 0
- Watchdog 1
