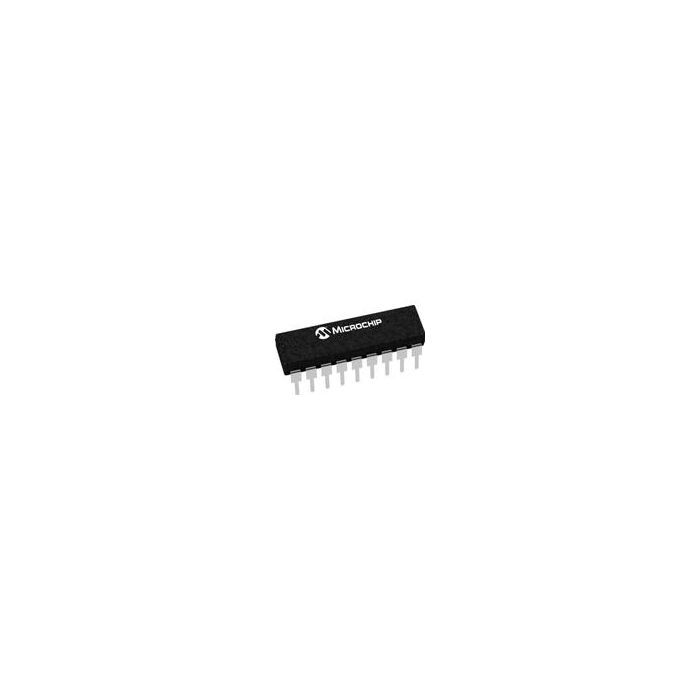

PIC16F819-I/Pxxx
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit PIC16 PIC RISC 3.5KB Flash 5V 18-Pin PDIP Tube |
MCU 8-bit PIC16 PIC RISC 3.5KB Flash 5V 18-Pin PDIP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 8
- PCNs 65
- MaskPart PIC16F819IPxxx%
- IntroductionDate Nov 21, 2002
Parametry
- ADC Channels 5
- ADC Resolution (bit) 10
- Analog Comparators N/A
- CAN 0
- Core Architecture PIC
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core PIC
- Display Driver N/A
- Ethernet 0
- Family Name PIC16
- I2C 1
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 20
- Maximum Clock Rate (MHz) 20
- Maximum Expanded Memory Size 14KB
- Maximum Power Dissipation (mW) 1000
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 16
- Number of Timers 3
- PWM 1
- Program Memory Size 3.5KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 256B
- SPI 1
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 0
- USART 0
- USB 0
- Watchdog 1
