PIC16F628A-I/P301

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
PIC16F628A-I_P301_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / PIC16F628A-I/P301

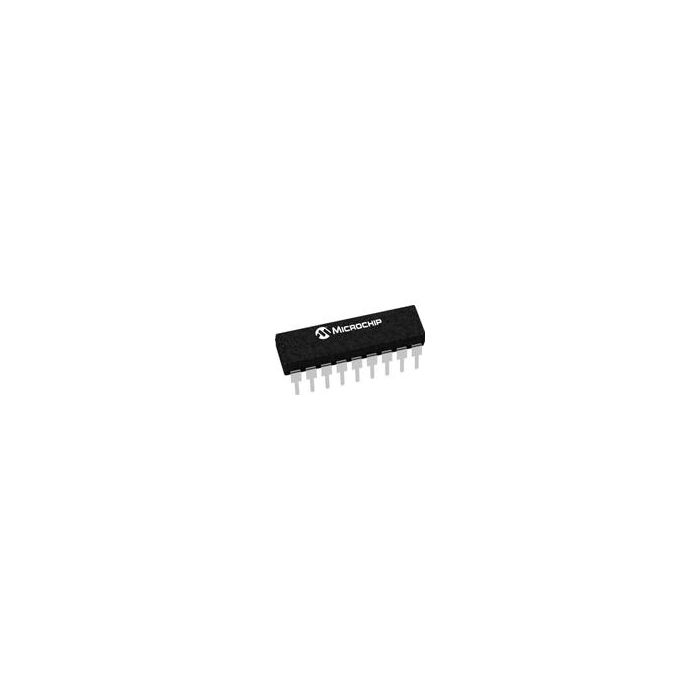

MCU 8-bit PIC RISC 3.5KB Flash 3.3V/5V 18-Pin PDIP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 12
  • PCNs 55
  • MaskPart PIC16F628A%IP301
  • IntroductionDate Dec 03, 2002

Parametry

  • ADC Channels N/A
  • ADC Resolution (bit) N/A
  • CAN 0
  • Core Architecture PIC
  • DAC Channels N/A
  • DAC Resolution (bit) N/A
  • Data Bus Width (bit) 8
  • Device Core PIC
  • Ethernet 0
  • Family Name PIC16
  • I2C 0
  • I2S 0
  • Instruction Set Architecture RISC
  • Interface Type USART
  • Maximum CPU Frequency (MHz) 20
  • Maximum Clock Rate (MHz) 20
  • Maximum Expanded Memory Size N/A
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 800
  • Minimum Operating Supply Voltage (V) 3
  • Minimum Operating Temperature (°C) -40
  • Number of ADCs N/A
  • Number of DACs N/A
  • Number of Programmable I/Os 16
  • Number of Timers 3
  • Operating Supply Voltage (V) 3.3|5
  • Program Memory Size 3.5KB
  • Program Memory Type Flash
  • Programmability Yes
  • RAM Size 224B
  • SPI 0
  • Special Features N/A
  • Supplier Temperature Grade Industrial
  • Temperature Flag Opr
  • Typical Operating Supply Voltage (V) 3.3|5
  • UART 0
  • USART 1
  • USB 0

Więcej informacji

Do pobrania Download
Main description MCU 8-bit PIC RISC 3.5KB Flash 3.3V/5V 18-Pin PDIP Tube
