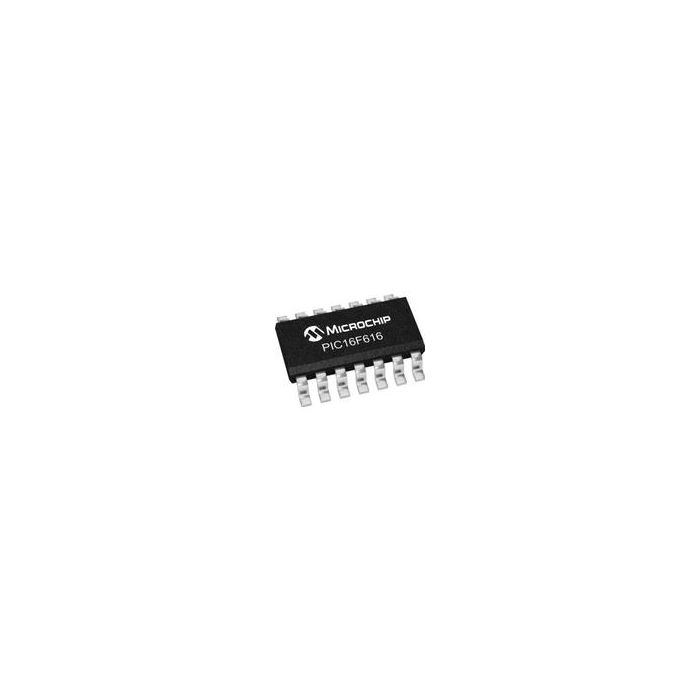

PIC16F616-I/SL
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit PIC16 PIC RISC 3.5KB Flash 2.5V/3.3V/5V Automotive 14-Pin SOIC N Tube |
MCU 8-bit PIC16 PIC RISC 3.5KB Flash 2.5V/3.3V/5V Automotive 14-Pin SOIC N Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 11
- Inventory 13
- PCNs 70
- GIDEP-Alerts 6
- MaskPart PIC16F616%ISL
- IntroductionDate Jan 16, 2006
Parametry
- ADC Channels 8
- ADC Resolution (bit) 10
- Analog Comparators 2
- CAN 0
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core PIC
- Display Driver N/A
- Ethernet 0
- Family Name PIC16
- I2C 0
- I2S 0
- Instruction Set Architecture RISC
- Interface Type N/A
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 20
- Maximum Clock Rate (MHz) 20
- Maximum Expanded Memory Size 112KB
- Maximum Power Dissipation (mW) 800
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 11
- Number of Timers 3
- PWM 1
- Program Memory Size 3.5KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 128B
- SPI 0
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 0
- USART 0
- USB 0
- Watchdog 1
