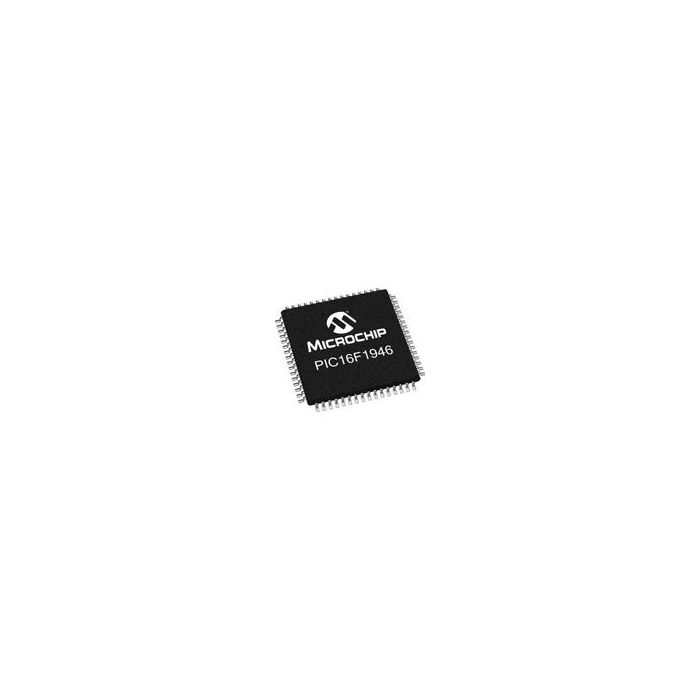

PIC16F1946-I/PT

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
PIC16F1946-I_PT_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / PIC16F1946-I/PT

MCU 8-bit PIC RISC 14KB Flash 3.3V/5V Automotive 64-Pin TQFP Tray

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 3
  • Inventory 12
  • PCNs 68
  • GIDEP-Alerts 8
  • MaskPart PIC16F1946IPT%
  • IntroductionDate Mar 01, 2010

Parametry

  • ADC Channels 17
  • ADC Resolution (bit) 10
  • Analog Comparators 3
  • CAN 0
  • DAC Channels N/A
  • DAC Resolution (bit) N/A
  • Data Bus Width (bit) 8
  • Data Memory Size N/A
  • Device Core PIC
  • Display Driver N/A
  • Ethernet 0
  • Family Name PIC16
  • I2C 2
  • I2S 0
  • Instruction Set Architecture RISC
  • Interface Type I2C/SPI/USART
  • LCD Segments 184
  • Maximum CPU Frequency (MHz) 32
  • Maximum Clock Rate (MHz) 32
  • Maximum Expanded Memory Size N/A
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 800
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of ADCs Single
  • Number of DACs N/A
  • Number of Programmable I/Os 54
  • Number of Timers 5
  • Operating Supply Voltage (V) 3.3|5
  • PWM 5
  • Program Memory Size 14KB
  • Program Memory Type Flash
  • Programmability Yes
  • RAM Size 512B
  • SPI 2
  • Special Features LCD Controller
  • Supplier Temperature Grade Industrial
  • Temperature Flag Opr
  • Typical Operating Supply Voltage (V) 3.3|5
  • UART 0
  • USART 2
  • USB 0
  • Watchdog 1

Więcej informacji

Do pobrania Download
Main description MCU 8-bit PIC RISC 14KB Flash 3.3V/5V Automotive 64-Pin TQFP Tray
