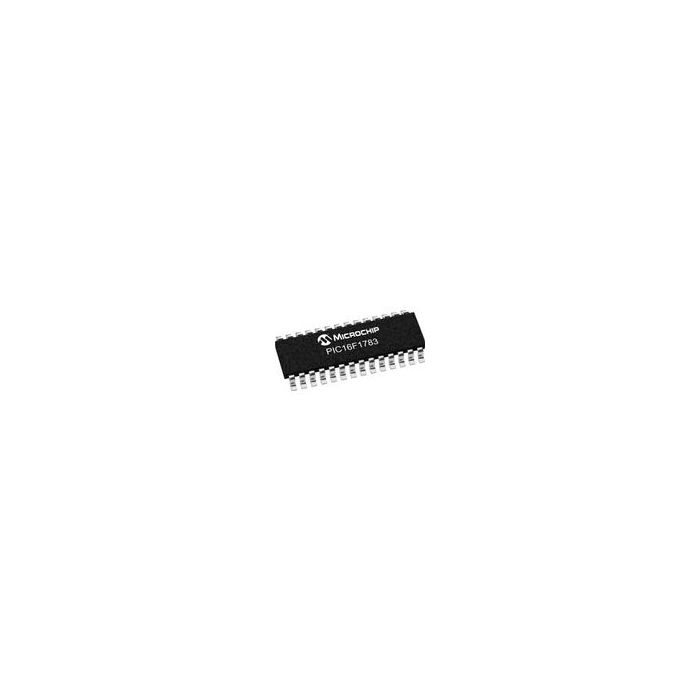

PIC16F1783-I/SO
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit PIC RISC 7KB Flash 3.3V/5V Automotive 28-Pin SOIC W Tube |
MCU 8-bit PIC RISC 7KB Flash 3.3V/5V Automotive 28-Pin SOIC W Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 12
- Inventory 10
- PCNs 60
- GIDEP-Alerts 6
- MaskPart PIC16F1783ISO%
- IntroductionDate Apr 01, 2011
Parametry
- ADC Channels 11
- ADC Resolution (bit) 12
- Analog Comparators 3
- CAN 0
- Core Architecture PIC
- DAC Channels 1
- DAC Resolution (bit) 8
- DMA Channels N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core PIC
- Display Driver N/A
- Ethernet 0
- Family Name PIC16
- I2C 1
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 32
- Maximum Clock Rate (MHz) 32
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 800
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs Single
- Number of Programmable I/Os 24
- Number of Timers 3
- PWM 2
- Program Memory Size 7KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 512B
- SPI 1
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 1
- USART 1
- USB 0
- Watchdog 1
