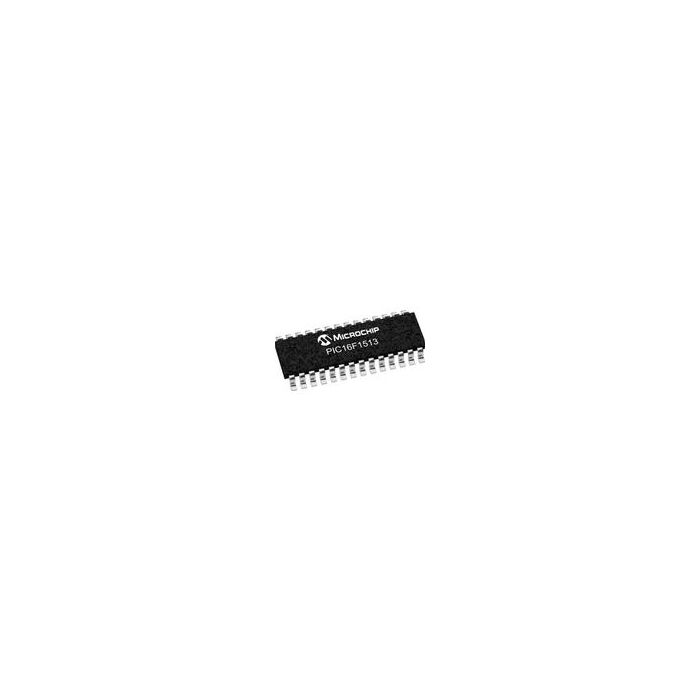

PIC16F1513-I/SO
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 28-Pin SOIC W Tube |
MCU 8-bit PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 28-Pin SOIC W Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 8
- Inventory 9
- PCNs 57
- GIDEP-Alerts 8
- MaskPart PIC16F1513ISO%
- IntroductionDate Feb 01, 2012
Parametry
- ADC Channels 17
- ADC Resolution (bit) 10
- Analog Comparators N/A
- CAN 0
- Core Architecture PIC
- DAC Channels N/A
- DAC Resolution (bit) N/A
- DMA Channels N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core PIC
- Display Driver N/A
- Ethernet 0
- Family Name PIC16
- I2C 1
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 20
- Maximum Clock Rate (MHz) 20
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 800
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 25
- Number of Timers 3
- PWM N/A
- Program Memory Size 7KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 256KB
- SPI 1
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 1
- USART 1
- USB 0
- Watchdog 1
