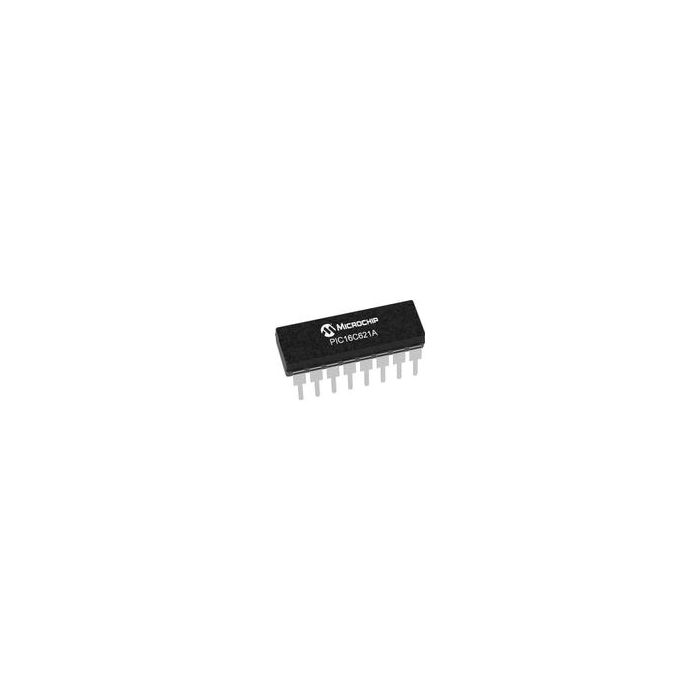

PIC16C621A-20/P
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit PIC RISC 1.75KB EPROM 3.3V/5V 18-Pin PDIP Tube |
MCU 8-bit PIC RISC 1.75KB EPROM 3.3V/5V 18-Pin PDIP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 11
- Inventory 4
- PCNs 59
- GIDEP-Alerts 6
- MaskPart PIC16C621A%20P
- IntroductionDate Dec 07, 1999
Parametry
- ADC Channels N/A
- ADC Resolution (bit) N/A
- Analog Comparators 2
- CAN 0
- Core Architecture PIC
- DAC Channels N/A
- DAC Resolution (bit) N/A
- DMA Channels N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core PIC
- Display Driver N/A
- Ethernet 0
- Family Name PIC16
- I2C 0
- I2S 0
- Instruction Set Architecture RISC
- Interface Type N/A
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 20
- Maximum Clock Rate (MHz) 20
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) 1000
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs N/A
- Number of DACs N/A
- Number of Programmable I/Os 13
- Number of Timers 1
- PWM N/A
- Program Memory Size 1.75KB
- Program Memory Type EPROM
- Programmability Yes
- RAM Size 96B
- SPI 0
- Special Features N/A
- Supplier Temperature Grade Commercial
- Temperature Flag Opr
- UART 0
- USART 0
- USB 0
- Watchdog 1
