PCF2127AT/1,518

ProducentNXP SemiconductorsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
PCF2127AT_1,518_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / PCF2127AT/1,518

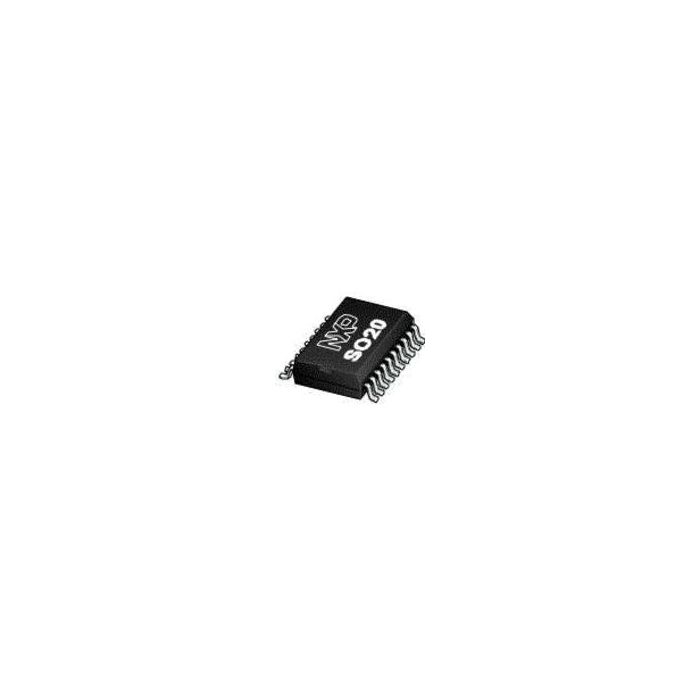

Real Time Clock Serial 512byte Clock/Calendar 20-Pin SO T/R

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 212
  • PCNs 16
  • MaskPart PCF2127AT1%
  • IntroductionDate Nov 25, 2008
  • AliasParts 935290953518

Parametry

  • Bus Type Serial (3-Wire, SPI)
  • Date Format DW:DM:M:Y
  • Function Clock/Calendar
  • Maximum Access Time (ns) N/A
  • Maximum Operating Supply Voltage (V) 4.2
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 300
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Supplier Temperature Grade N/A
  • Time Format HH:MM:SS
  • Typical Operating Supply Voltage (V) 2.5|3.3
  • User RAM (byte) 512

Więcej informacji

Do pobrania Download
Main description Real Time Clock Serial 512byte Clock/Calendar 20-Pin SO T/R
