PCA9617ADPJ

ProducentNXP SemiconductorsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
PCA9617ADPJ_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / PCA9617ADPJ

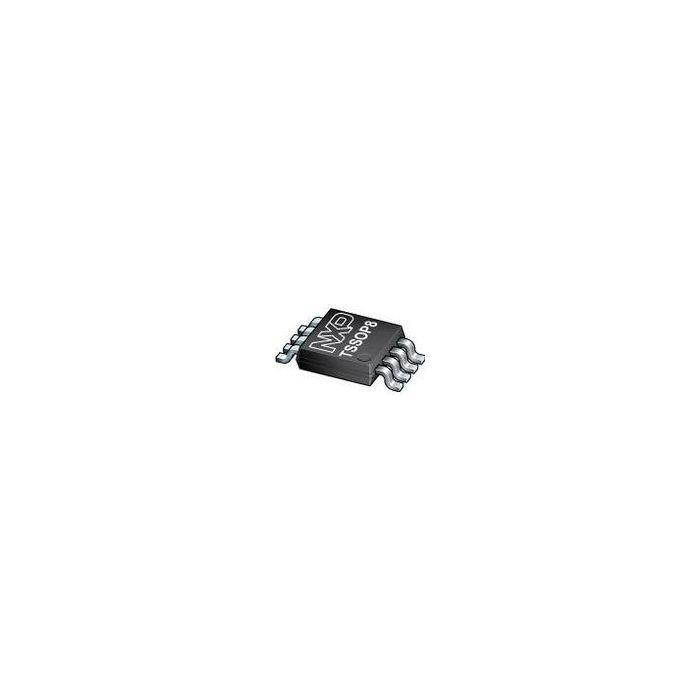

I2C Repeater 3.3V/5V 8-Pin TSSOP T/R

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 25
  • Inventory 9
  • PCNs 18
  • MaskPart PCA9617ADPJ%
  • IntroductionDate Mar 20, 2013
  • AliasParts 935299953118

Parametry

  • Input Signal Type I2C
  • Maximum Clock Frequency (kHz) 1000
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 100
  • Maximum Propagation Delay Time (tPHL) (ns) 173
  • Maximum Propagation Delay Time (tPLH) (ns) 130
  • Maximum Storage Temperature (°C) 125
  • Maximum Supply Current (mA) 2.9
  • Minimum Operating Supply Voltage (V) 2.2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Process Technology CMOS
  • Supplier Temperature Grade N/A
  • Temperature Flag Opr
  • Type Repeater
  • Typical Input Capacitance (pF) 6
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description I2C Repeater 3.3V/5V 8-Pin TSSOP T/R
