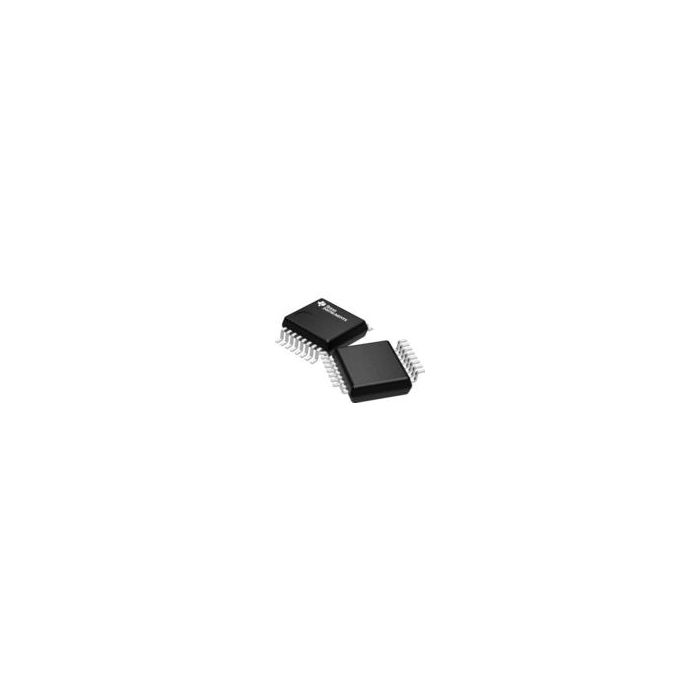

PCA9554DBG4
Do pobrania | Download |
---|---|
Main description | I2C/SMBus Interface 400kHz 5.5V 16-Pin SSOP Tube |
I2C/SMBus Interface 400kHz 5.5V 16-Pin SSOP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 45
- Inventory 5*
- PCNs 40
- MaskPart PCA9554DB%G4
- IntroductionDate Aug 01, 2003
Parametry
- I2C Bus Interface Mode Standard Mode|Fast Mode
- Interface Speed (kHz) 400
- Interface Type I2C|SMBus
- Interrupt Output Yes
- Manual Reset No
- Maximum Quiescent Current (uA) 700
- Maximum Sink Current per Bit (mA) 25
- Maximum Source Current per Bit (mA) -10
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Addresses 8
- Number of I/Os 8
- Output Type Open Drain
- Supplier Temperature Grade N/A
