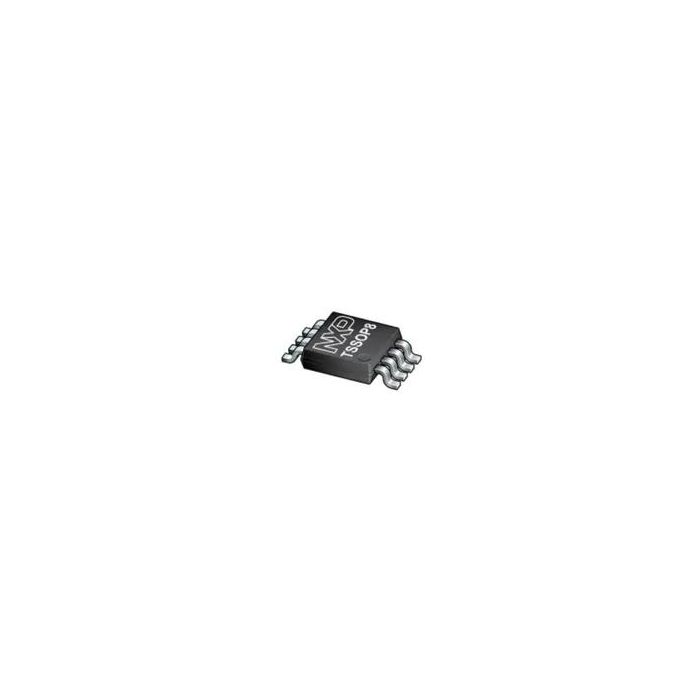

PCA9553DP/01

ProducentNXP SemiconductorsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
PCA9553DP_01_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / PCA9553DP/01

LED Driver 500uA Supply Current 8-Pin TSSOP

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1127
  • Inventory 9*
  • PCNs 26
  • MaskPart PCA9553DP01%
  • IntroductionDate Sep 01, 2002

Parametry

  • High Level Output Current (uA) N/A
  • Low Level Output Current (uA) 25000(Min)
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) 25
  • Maximum Power Dissipation (mW) 400
  • Maximum Quiescent Current (mA) 0.325
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (uA) 500
  • Minimum Operating Supply Voltage (V) 2.3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Digits N/A
  • Number of Segments N/A
  • Operating Supply Voltage (V) 2.3 to 5.5
  • Output Voltage (V) N/A
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description LED Driver 500uA Supply Current 8-Pin TSSOP
