PCA9550TK,118

ProducentNXP SemiconductorsEURoHSUnknown (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
PCA9550TK,118_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / PCA9550TK,118

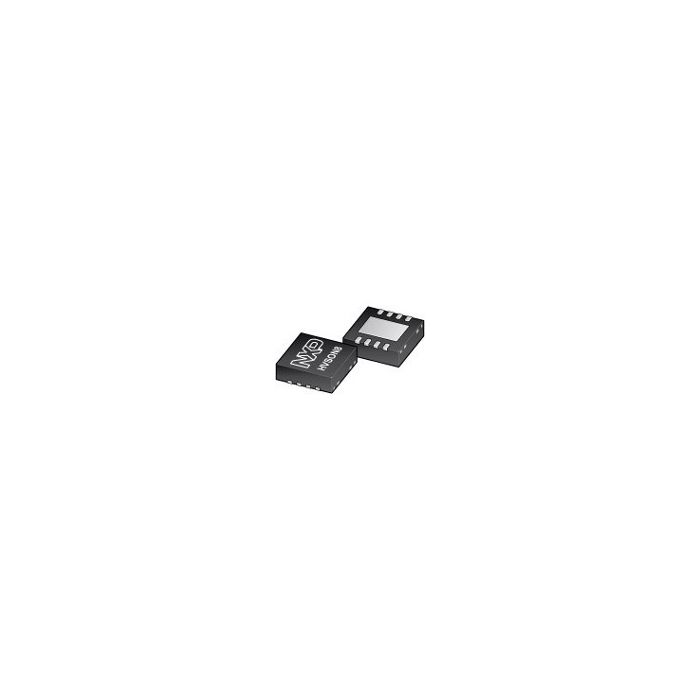

LED Driver 500uA Supply Current 8-Pin HVSON EP T/R

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSUnknown (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 1118
  • PCNs 12
  • MaskPart PCA9550TK118%
  • IntroductionDate Sep 01, 2002

Parametry

  • Hardware Reset Input Yes
  • High Level Output Current (uA) N/A
  • I2C Bus Interface Mode N/A
  • Input/Output Type N/A
  • Interface Type I2C
  • LED Pin I/O Support No
  • Low Level Output Current (uA) 24000(Typ)
  • Maximum Clock Frequency (MHz) 0.4
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) 25
  • Maximum Power Dissipation (mW) 400
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (uA) 500
  • Maximum Switching Frequency (MHz) N/A
  • Minimum Operating Supply Voltage (V) 2.3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Device Addresses N/A
  • Number of Digits N/A
  • Number of LED Outputs N/A
  • Number of Segments N/A
  • Operating Supply Voltage (V) 2.3 to 5.5
  • Output Voltage (V) N/A
  • Process Technology N/A
  • Supplier Temperature Grade N/A
  • Topology N/A
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description LED Driver 500uA Supply Current 8-Pin HVSON EP T/R
