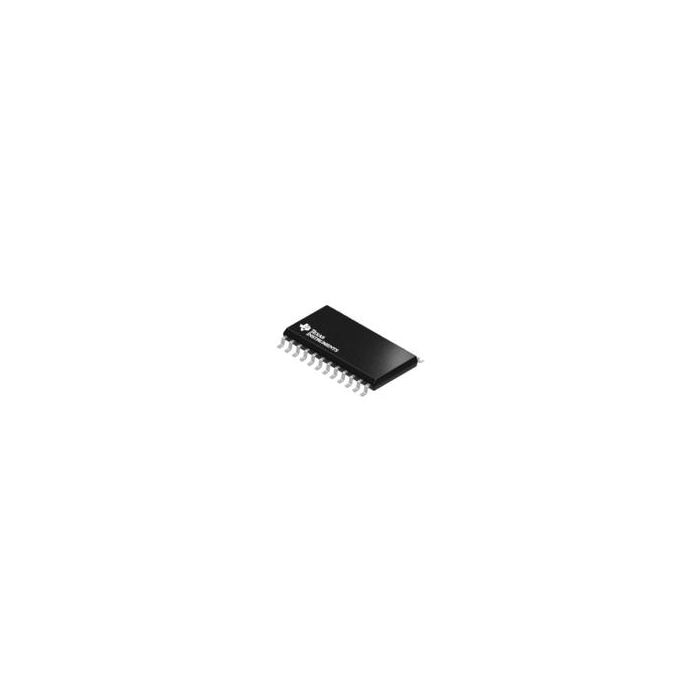

PCA9548ADWG4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
PCA9548ADWG4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / PCA9548ADWG4

I2C Multiplexer 1-Element 8-IN 24-Pin SOIC Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 18
  • Inventory 7*
  • PCNs 40
  • MaskPart PCA9548ADW%G4
  • IntroductionDate Aug 01, 2003

Parametry

  • Absolute Propagation Delay Time (ns) 1
  • Configuration 1 x 8:1
  • Input Signal Type Single-Ended
  • Logic Family N/A
  • Logic Function I2C Multiplexer
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (MHz) 0.4
  • Maximum High Level Output Current (mA) N/A
  • Maximum Low Level Output Current (mA) 9(Typ)
  • Maximum On Resistance (Ohm) 15(Typ)
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 1@2.3V to 5.5V
  • Maximum Quiescent Current (uA) 80
  • Maximum Supply Current (mA) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Supply Voltage (V) 2.3
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 1
  • Number of Input Enables per Element 0
  • Number of Inputs per Chip 8
  • Number of Output Enables per Element 0
  • Number of Outputs per Chip 1
  • Number of Selection Inputs per Element 3
  • Output Signal Type Single-Ended
  • Output Type N/A
  • Parity Invert Input No
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Process Technology N/A
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Tolerant I/Os (V) 5 Inputs
  • Typical Operating Supply Voltage (V) 2.5|3.3|5
  • Typical Quiescent Current (uA) 50
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description I2C Multiplexer 1-Element 8-IN 24-Pin SOIC Tube
