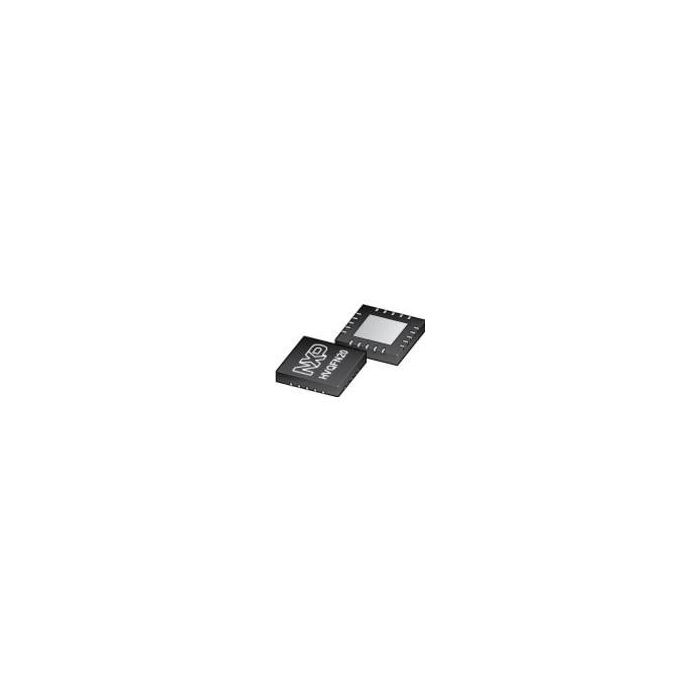

PCA9544ABS,118
| Do pobrania | Download |
|---|---|
| Main description | I2C Multiplexer 1-Element 4-IN 20-Pin HVQFN EP T/R |
I2C Multiplexer 1-Element 4-IN 20-Pin HVQFN EP T/R
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 4
- Inventory 5
- PCNs 19
- MaskPart PCA9544ABS%
- IntroductionDate Jan 07, 2004
- AliasParts PCA9544ABS-T935275805118
Parametry
- Absolute Propagation Delay Time (ns) 0.3
- Configuration 1 x 4:1
- Input Signal Type Single-Ended
- Logic Family N/A
- Logic Function I2C Multiplexer
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (MHz) 0.4
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) 6(Min)
- Maximum On Resistance (Ohm) 55
- Maximum Power Dissipation (mW) 400
- Maximum Propagation Delay Time @ Maximum CL (ns) 0.3@2.3V to 5.5V
- Maximum Quiescent Current (uA) 600
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Test Temperature (°C) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Storage Temperature (°C) -60
- Minimum Test Temperature (°C) N/A
- Number of Elements per Chip 1
- Number of Input Enables per Element 4
- Number of Inputs per Chip 4
- Number of Output Enables per Element 1
- Number of Outputs per Chip 1
- Number of Selection Inputs per Element 3
- Output Signal Type Single-Ended
- Output Type N/A
- Parity Invert Input No
- Polarity Non-Inverting
- Power Supply Type Single
- Process Technology N/A
- Propagation Delay Test Condition (pF) 15
- Supplier Temperature Grade N/A
- Tolerant I/Os (V) 5 Inputs
- Typical Quiescent Current (uA) 575
- Typical Supply Current (mA) N/A
