PAM8615RHR

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
PAM8615RHR_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / PAM8615RHR

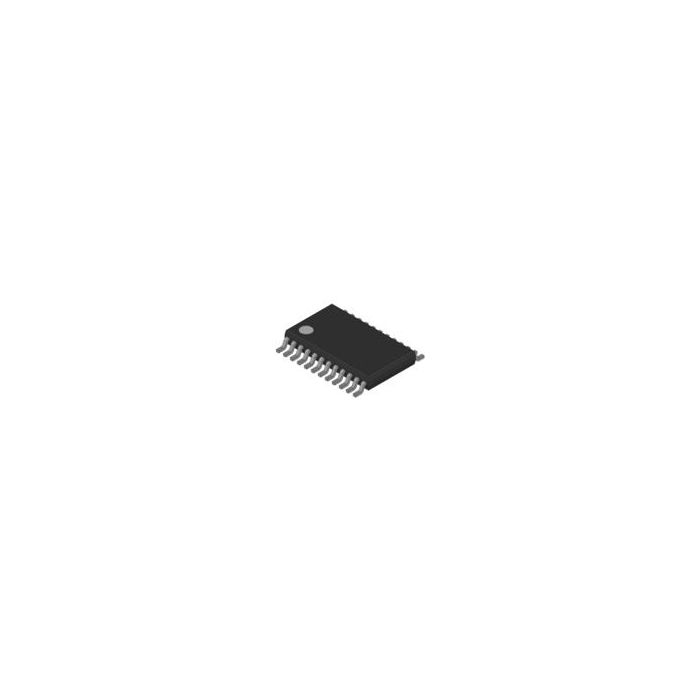

Audio Amp Speaker 1-CH Mono/2-CH Stereo 17.3W Class-D 24-Pin TSSOP EP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 5
  • PCNs 14
  • MaskPart PAM8615RH%
  • IntroductionDate Oct 18, 2012

Parametry

  • Amplifier Type Class-D
  • Function Speaker
  • Input Signal Type Single
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) N/A
  • Maximum Input Offset Voltage (mV) N/A
  • Maximum Load Resistance (Ohm) 8
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) N/A
  • Maximum Output Offset Voltage (mV) 65@24V
  • Maximum Output Power x Channels @ Load (W) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 40@24V
  • Maximum Single Supply Voltage (V) 30
  • Maximum Supply Current (mA) N/A
  • Minimum CMRR (dB) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Load Resistance (Ohm) 4
  • Minimum Operating Temperature (°C) -20
  • Minimum Single Supply Voltage (V) 8
  • Output Signal Type Differential|Single
  • Output Type 1-Channel Mono|2-Channel Stereo
  • Power Supply Type Single
  • Rail to Rail N/A
  • Supplier Temperature Grade N/A
  • Total Harmonic Distortion Noise 0.25%@4Ohm@10W|0.15%@8Ohm@5W
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Output Power x Channels @ Load (W) 17.3x1@4Ohm|35x2@8Ohm
  • Typical PSRR (dB) 60
  • Typical Quiescent Current (mA) 25@24V
  • Typical Single Supply Voltage (V) 9|12|15|18|24|28
  • Typical Supply Current (mA) N/A
  • Typical Voltage Gain (dB) N/A

Więcej informacji

Do pobrania Download
Main description Audio Amp Speaker 1-CH Mono/2-CH Stereo 17.3W Class-D 24-Pin TSSOP EP T/R
