PAM8404KGR

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
PAM8404KGR_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / PAM8404KGR

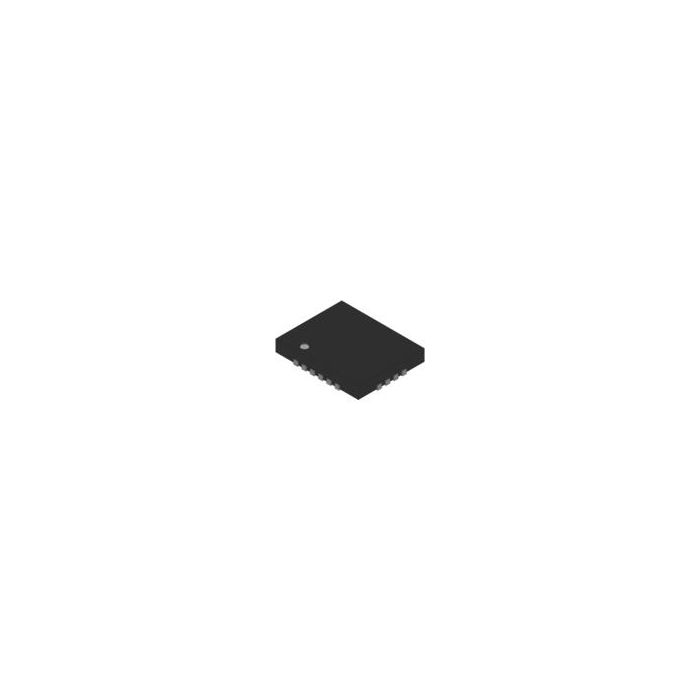

Audio Amp Speaker 2-CH Stereo 3W Class-D 20-Pin QFN EP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 55
  • Inventory 2
  • PCNs 15
  • MaskPart PAM8404KG%
  • IntroductionDate Nov 09, 2012

Parametry

  • Amplifier Type Class-D
  • Function Speaker
  • Input Signal Type Differential
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) N/A
  • Maximum Input Offset Voltage (mV) N/A
  • Maximum Load Resistance (Ohm) 8
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) N/A
  • Maximum Output Offset Voltage (mV) 10(Typ)@5V
  • Maximum Output Power x Channels @ Load (W) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) N/A
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) N/A
  • Minimum CMRR (dB) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Load Resistance (Ohm) 4
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2.5
  • Output Signal Type Differential
  • Output Type 2-Channel Stereo
  • Power Supply Type Single
  • Rail to Rail N/A
  • Supplier Temperature Grade N/A
  • Total Harmonic Distortion Noise 0.23%@4Ohm@1W|0.15%@8Ohm@0.5W
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Output Power x Channels @ Load (W) 3x2@4Ohm
  • Typical PSRR (dB) 63
  • Typical Quiescent Current (mA) 10@5V
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) N/A
  • Typical Voltage Gain (dB) 24

Więcej informacji

Do pobrania Download
Main description Audio Amp Speaker 2-CH Stereo 3W Class-D 20-Pin QFN EP T/R
