PAM8304AYR
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 1-CH Mono 3W Class-D 8-Pin DFN EP T/R |

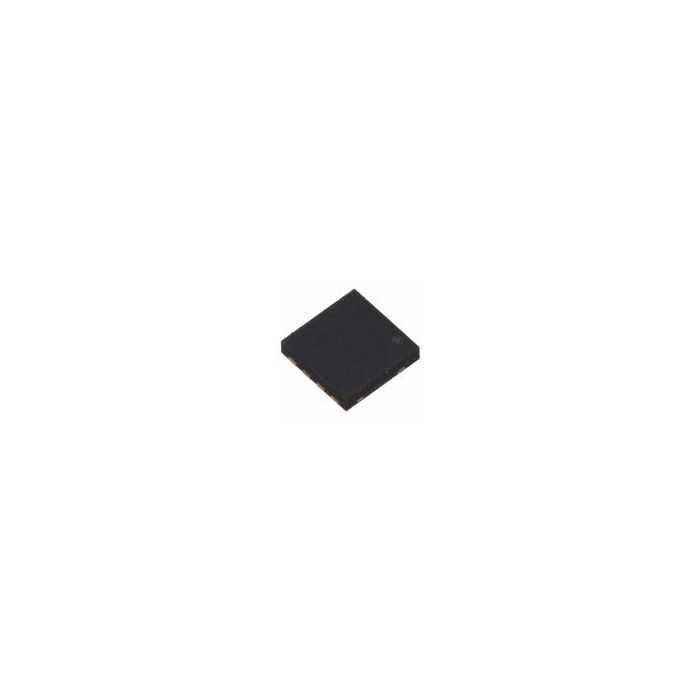

Audio Amp Speaker 1-CH Mono 3W Class-D 8-Pin DFN EP T/R
Informacje podstawowe
- ProducentDiodes Incorporated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 28
- Inventory 3
- PCNs 14
- MaskPart PAM8304AYR%
- IntroductionDate Oct 11, 2013
Parametry
- Amplifier Type Class-D
- Function Speaker
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Single Supply Voltage (V) 6
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.8
- Minimum Storage Temperature (°C) -65
- Output Signal Type Differential
- Output Type 1-Channel Mono
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.17%@8Ohm@1W|0.14%@4Ohm@0.5W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 3x1@4Ohm
- Typical PSRR (dB) 70
- Typical Quiescent Current (mA) 5@5V
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) N/A
