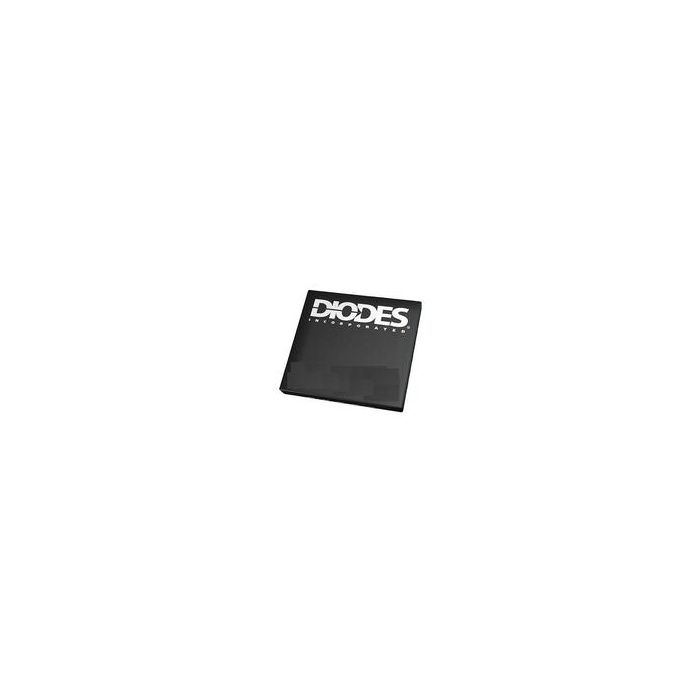

PAM8009KGR
ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- PAM8009KGR_DIODES_INCORPORATED
0,00 zł
Opis / PAM8009KGR
Audio Amp Headphone/Speaker 2-CH Stereo 3W Class-AB/Class-D 20-Pin UQFN EP T/R
Informacje podstawowe
- ProducentDiodes Incorporated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 9
- Inventory 1
- PCNs 14
- MaskPart PAM8009KG%
- IntroductionDate Jan 22, 2015
Parametry
- Amplifier Type Class-AB|Class-D
- Function Headphone/Speaker
- Input Signal Type Single
- Input Voltage N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 32
- Maximum Output Current (mA) N/A
- Maximum Output Offset Voltage (mV) 10(Typ)@5V
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) N/A
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Load Resistance (Ohm) 4
- Minimum Single Supply Voltage (V) 2.8
- Minimum Storage Temperature (°C) -65
- Output Signal Type Differential|Single
- Output Type 2-Channel Stereo
- Output Voltage N/A
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.08%@4Ohm@1.6W|0.02%@32Ohm@0.05W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Noise Voltage (uV) N/A
- Typical Output Power x Channels @ Load (W) 3x2@4Ohm|0.06x2@32Ohm
- Typical PSRR (dB) 75
- Typical Quiescent Current (mA) 7@5V
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Headphone/Speaker 2-CH Stereo 3W Class-AB/Class-D 20-Pin UQFN EP T/R |
