PAM8001XHR
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 2-CH Stereo 2.8W Class-D 20-Pin QFN EP T/R |

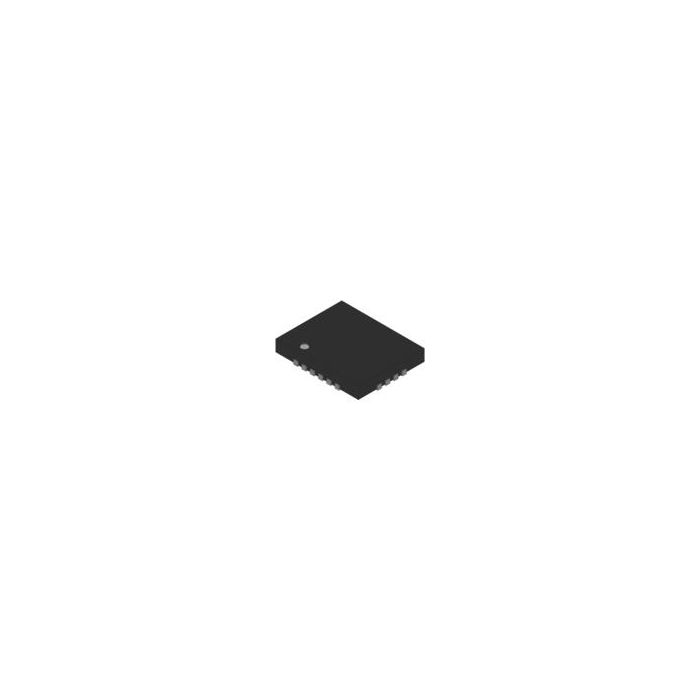

Audio Amp Speaker 2-CH Stereo 2.8W Class-D 20-Pin QFN EP T/R
Informacje podstawowe
- ProducentDiodes Incorporated
- EURoHSYes (2002/95/EC)
- Automotive No
Informacje dodatkowe
- Crosses 17
- PCNs 15
- MaskPart PAM8001XH%
Parametry
- Amplifier Type Class-D
- Function Speaker
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) N/A
- Maximum Output Offset Voltage (mV) 20(Typ)@5V
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 15@5V
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Load Resistance (Ohm) 4
- Minimum Single Supply Voltage (V) 2.5
- Output Signal Type Differential
- Output Type 2-Channel Stereo
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.08%@4Ohm@1.75W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 2.8x2@4Ohm
- Typical PSRR (dB) 70
- Typical Quiescent Current (mA) 11.5@5V
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) N/A
