PAM2307AJEADJR

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
PAM2307AJEADJR_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / PAM2307AJEADJR

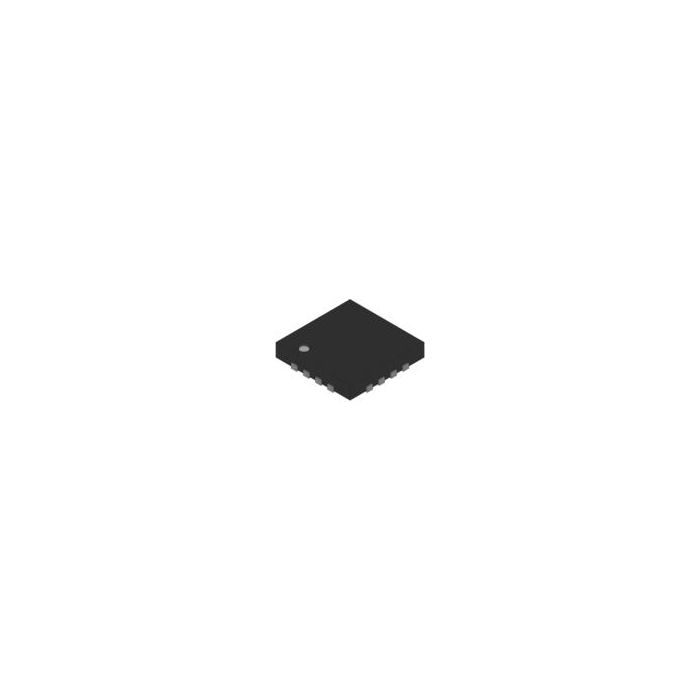

Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.5V 3A 16-Pin QFN EP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 152
  • Inventory 1
  • PCNs 16
  • MaskPart PAM2307AJEADJR%
  • IntroductionDate Sep 28, 2012

Parametry

  • Efficiency (%) 95
  • Isolation N/A
  • Line Regulation 0.2%/V(Typ)
  • Load Regulation 0.5%/A(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 3
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.5 to 5.5
  • Output Type Adjustable
  • Output Voltage (V) 0.6 to 5.5
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 1200 to 1800
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 42
  • Typical Switch Current (A) N/A

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.5V 3A 16-Pin QFN EP T/R
