P6SMBJ33CA

ProducentDiotec Semiconductor AGEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
P6SMBJ33CA_DIOTEC_SEMICONDUCTOR_AG
0,00 zł

Zapytaj o ten produkt

Opis / P6SMBJ33CA

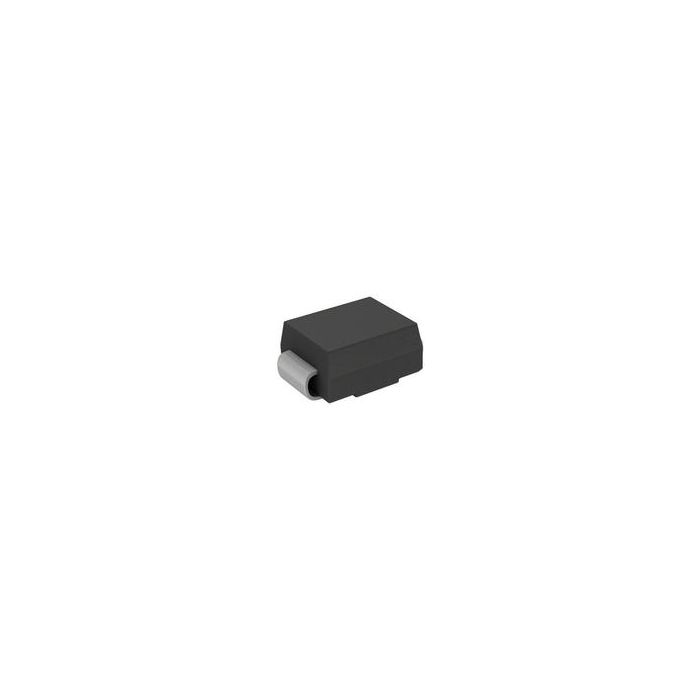

Diode TVS Single Bi-Dir 33V 600W Automotive 2-Pin SMB T/R

Informacje podstawowe

  • ProducentDiotec Semiconductor AG
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 261
  • Inventory 1
  • PCNs 1
  • MaskPart P6SMBJ33CA%
  • SupplierUrl http://diotec.com/en/products/all-products/productlist.html?aid=P6SMBJ33CA

Parametry

  • Configuration Single
  • Direction Type Bi-Directional
  • Maximum Clamping Voltage (V) 53.3
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 11.3
  • Maximum Reverse Leakage Current (uA) 5
  • Maximum Reverse Stand-Off Voltage (V) 33
  • Maximum Storage Temperature (°C) 150
  • Minimum Breakdown Voltage (V) 36.7
  • Minimum Operating Temperature (°C) -50
  • Minimum Storage Temperature (°C) -50
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -50 to 150
  • Peak Pulse Power Dissipation (W) 600
  • Supplier Temperature Grade Commercial
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Bi-Dir 33V 600W Automotive 2-Pin SMB T/R
