P6SMB6.8CAHM3_A/I
Do pobrania | Download |
---|---|
Main description | Diode TVS Single Bi-Dir 5.8V 600W Automotive 2-Pin SMB T/R |

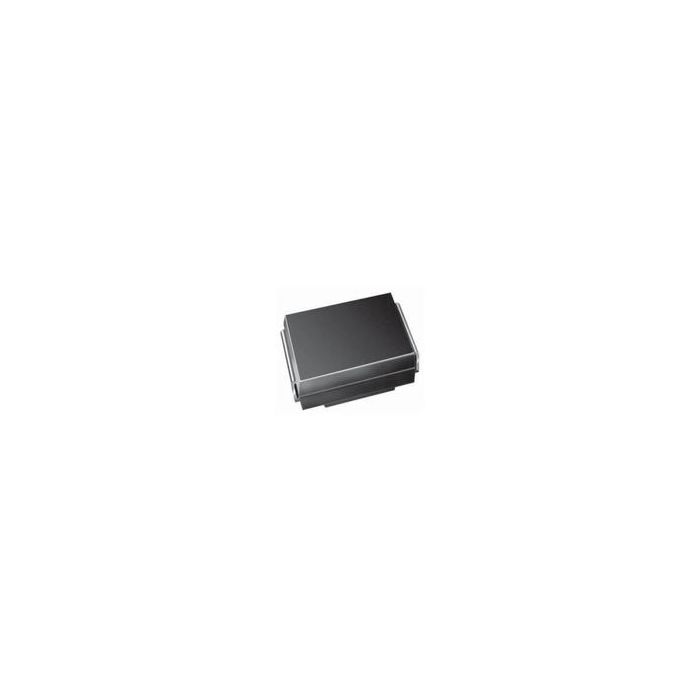

Diode TVS Single Bi-Dir 5.8V 600W Automotive 2-Pin SMB T/R
Informacje podstawowe
- ProducentVishay
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 233
- PCNs 22
- MaskPart P6SMB6.8CAHM3%A%
Parametry
- Configuration Single
- Direction Type Bi-Directional
- Maximum Clamping Voltage (V) 10.5
- Maximum Peak Pulse Current (A) 57.1
- Maximum Reverse Leakage Current (uA) 2000
- Maximum Reverse Stand-Off Voltage (V) 5.8
- Maximum Storage Temperature (°C) 150
- Minimum Breakdown Voltage (V) 6.45
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Peak Pulse Power Dissipation (W) 600
- Supplier Temperature Grade Automotive
- Test Current (mA) 10
