P6SMB6.8A-E3/52
Do pobrania | Download |
---|---|

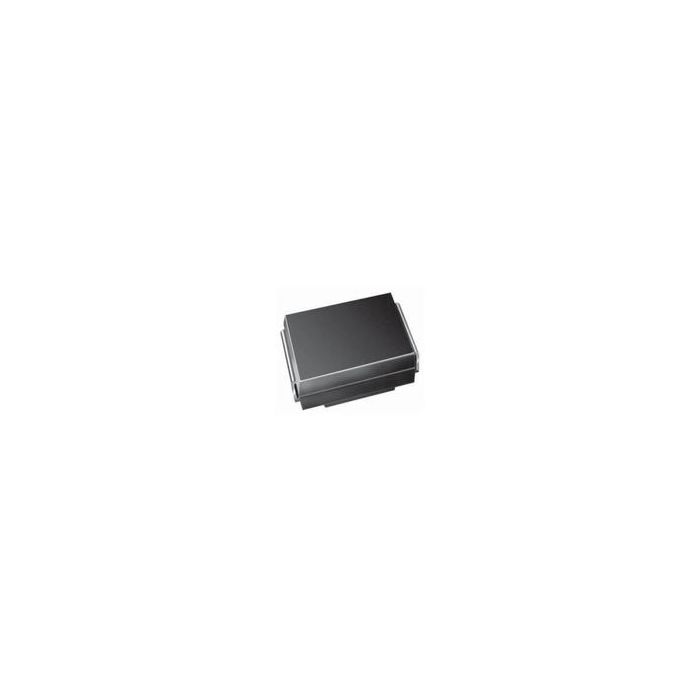

Main description | Diode TVS Single Uni-Dir 5.8V 600W 2-Pin SMB T/R |
Diode TVS Single Uni-Dir 5.8V 600W 2-Pin SMB T/R
Informacje podstawowe
- ProducentVishay
- EURoHSYes with Exemption (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 304
- Inventory 8
- PCNs 25
- GIDEP-Alerts 2
- MaskPart P6SMB6.8AE3%
- IntroductionDate Jan 02, 2001
Parametry
- Configuration Single
- Direction Type Uni-Directional
- Maximum Clamping Voltage (V) 10.5
- Maximum Peak Pulse Current (A) 57.1
- Maximum Reverse Leakage Current (uA) 1000
- Maximum Reverse Stand-Off Voltage (V) 5.8
- Maximum Storage Temperature (°C) 150
- Minimum Breakdown Voltage (V) 6.45
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Peak Pulse Power Dissipation (W) 600
- Supplier Temperature Grade Commercial
- Test Current (mA) 10
