P6SMB39CA-E3/52
Do pobrania | Download |
---|---|
Main description | Diode TVS Single Bi-Dir 33.3V 600W 2-Pin SMB T/R |

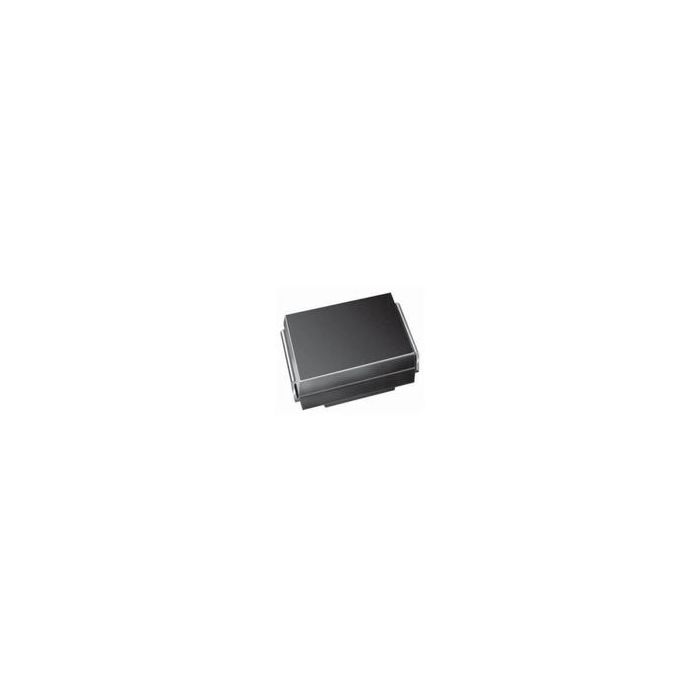

Diode TVS Single Bi-Dir 33.3V 600W 2-Pin SMB T/R
Informacje podstawowe
- ProducentVishay
- EURoHSYes with Exemption (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 278
- Inventory 2
- PCNs 24
- GIDEP-Alerts 1
- MaskPart P6SMB39CAE3%
- IntroductionDate Jan 02, 2001
Parametry
- Configuration Single
- Direction Type Bi-Directional
- Maximum Clamping Voltage (V) 53.9
- Maximum Peak Pulse Current (A) 11.1
- Maximum Reverse Leakage Current (uA) 1
- Maximum Reverse Stand-Off Voltage (V) 33.3
- Maximum Storage Temperature (°C) 150
- Minimum Breakdown Voltage (V) 37.1
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Peak Pulse Power Dissipation (W) 600
- Supplier Temperature Grade Commercial
- Test Current (mA) 1
