P6SMB18AHE3_A/I

ProducentVishayEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
P6SMB18AHE3_A_I_VISHAY
0,00 zł

Zapytaj o ten produkt

Opis / P6SMB18AHE3_A/I

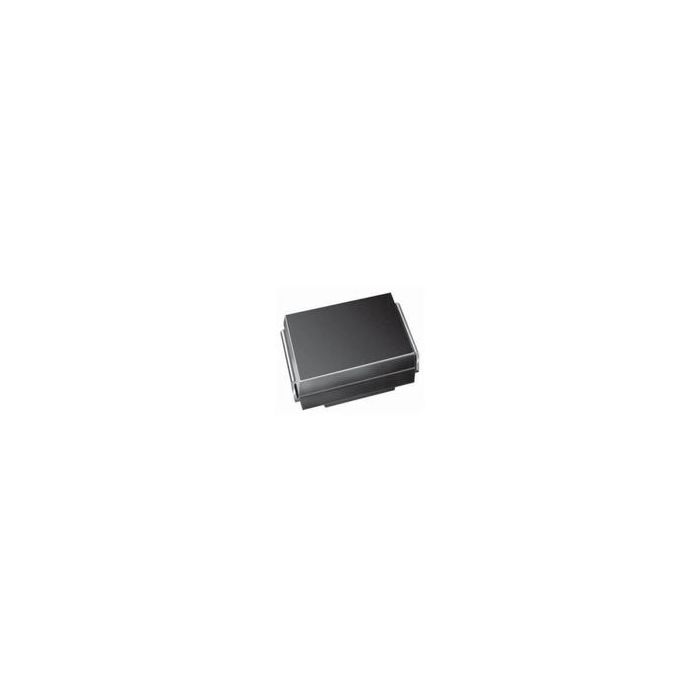

Diode TVS Single Uni-Dir 15.3V 600W Automotive 2-Pin SMB T/R

Informacje podstawowe

  • ProducentVishay
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 306
  • PCNs 22
  • MaskPart P6SMB18AHE3%A%

Parametry

  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Clamping Voltage (V) 25.2
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 23.8
  • Maximum Reverse Leakage Current (uA) 1
  • Maximum Reverse Stand-Off Voltage (V) 15.3
  • Maximum Storage Temperature (°C) 150
  • Minimum Breakdown Voltage (V) 17.1
  • Minimum Operating Temperature (°C) -65
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -65 to 150
  • Peak Pulse Power Dissipation (W) 600
  • Supplier Temperature Grade Automotive
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 15.3V 600W Automotive 2-Pin SMB T/R
