OPA2677U
| Do pobrania | Download |
|---|---|
| Main description | ADSL Driver Dual 2000MHz 8-Pin SOIC Tube |

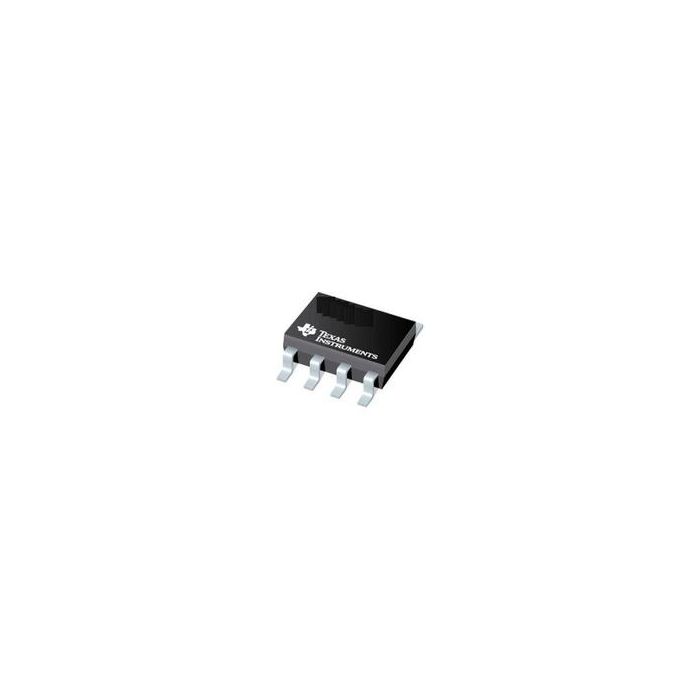

ADSL Driver Dual 2000MHz 8-Pin SOIC Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 12
- Inventory 7
- PCNs 61
- MaskPart OPA2677U%
- IntroductionDate Jun 01, 2005
Parametry
- Amplifier Topology Current Feedback Amplifier
- JTAG Support No
- Maximum Dual Supply Voltage (V) ±6.3
- Maximum High Drive Current (mA) 500(Typ)
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 12.6
- Maximum Storage Temperature (°C) 125
- Maximum Supply Current (A) 18
- Minimum CMRR (dB) 49
- Minimum Dual Supply Voltage (V) ±2
- Minimum Single Supply Voltage (V) 4
- Minimum Storage Temperature (°C) -65
- Mode of Oscillation N/A
- Number of Drivers/Receivers 2
- Output Impedance (Ohm) 0.02
- Output Type Differential
- Power Supply Type Single|Dual
- Supplier Temperature Grade N/A
- Type Driver
- Typical 3dB Bandwidth (MHz) N/A
- Typical Dual Supply Voltage (V) ±6
- Typical Gain Bandwidth Product (MHz) 2000
- Typical Single Supply Voltage (V) 5
- Typical Slew Rate (V/us) 2000@6V
- Typical Total Harmonic Distortion (dB) -93
