OPA2673IDGQR
| Do pobrania | Download |
|---|---|

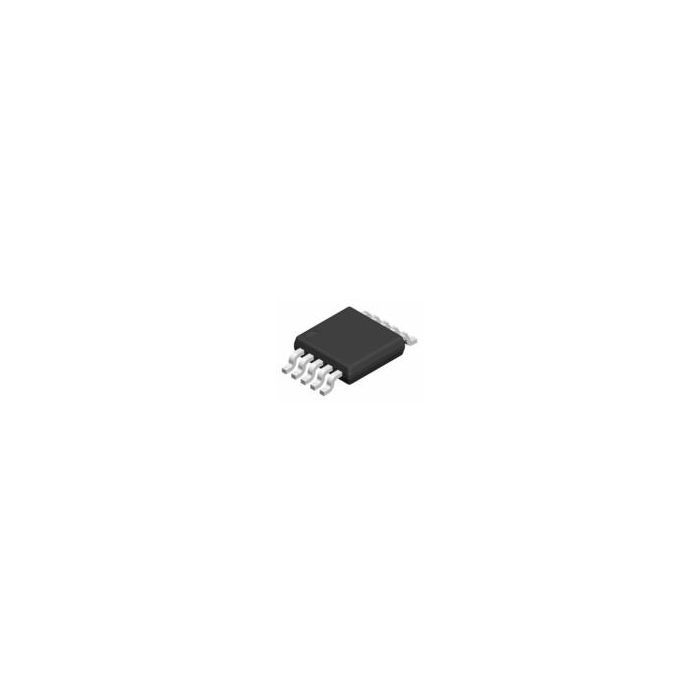

| Main description | Op Amp Dual Current Fdbk ±6.5V 10-Pin HVSSOP EP T/R |
Op Amp Dual Current Fdbk ±6.5V 10-Pin HVSSOP EP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSUnknown (2002/95/EC)
- Automotive No
Informacje dodatkowe
- Crosses 10
- PCNs 40
- MaskPart OPA2673IDGQ%
- IntroductionDate Jun 01, 2008
Parametry
- Manufacturer Type High Speed Amplifier
- Maximum Dual Supply Voltage (V) ±6.5
- Maximum Input Bias Current (uA) 25@±6V
- Maximum Input Offset Current (uA) N/A
- Maximum Input Offset Voltage (mV) 7@±6V
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 12.5 to 15
- Minimum CMRR (dB) 50
- Minimum CMRR Range (dB) 50 to 60
- Minimum Dual Supply Voltage (V) ±3.5
- Minimum PSRR (dB) 49
- Minimum Single Supply Voltage (V) N/R
- Number of Channels per Chip 2
- Output Type N/A
- Power Supply Type Dual
- Process Technology BiCOM
- Rail to Rail N/A
- Shut Down Support Yes
- Supplier Temperature Grade N/A
- Type Current Feedback Amplifier
- Typical Dual Supply Voltage (V) ±6
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Input Noise Voltage Density (nV/rtHz) 2.4@±6V
- Typical Inverting Input Current Noise Density (pA/rtHz) 35@±6V
- Typical Noninverting Input Current Noise Density (pA/rtHz) 5.2@±6V
- Typical Output Current (mA) 700@±6V
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) N/R
- Typical Slew Rate (V/us) 3000@±6V
- Typical Voltage Gain (dB) N/A
