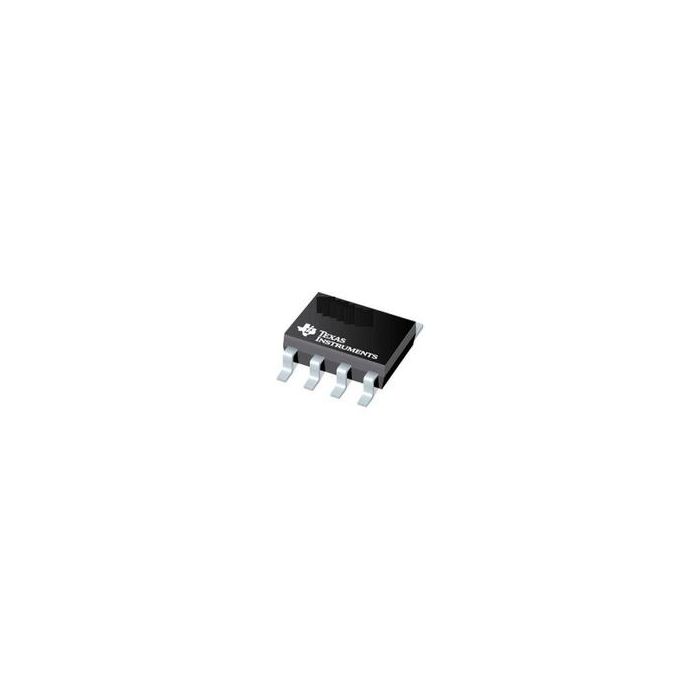

OPA2379AID
| Do pobrania | Download |
|---|---|
| Main description | Op Amp Dual GP R-R I/O 5.5V 8-Pin SOIC Tube |
Op Amp Dual GP R-R I/O 5.5V 8-Pin SOIC Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 367
- Inventory 9
- PCNs 39
- MaskPart OPA2379AID%
- IntroductionDate Jun 22, 2005
Parametry
- Manufacturer Type Low Power Amplifier
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) 0.00005@5V
- Maximum Input Offset Current (uA) 0.00005@5V
- Maximum Input Offset Voltage (mV) 1.5@5V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 0.011@5.5V
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 5.5 to 6
- Minimum CMRR (dB) 90
- Minimum CMRR Range (dB) 90 to 95
- Minimum Dual Supply Voltage (V) N/R
- Minimum PSRR (dB) 113.98(Typ)
- Minimum Single Supply Voltage (V) 1.8
- Number of Channels per Chip 2
- Output Type N/A
- Power Supply Type Single
- Process Technology N/A
- Rail to Rail Rail to Rail Input/Output
- Shut Down Support No
- Supplier Temperature Grade N/A
- Type General Purpose Amplifier
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) 0.09
- Typical Input Noise Voltage Density (nV/rtHz) 80@5.5V
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) 0.001@5.5V
- Typical Output Current (mA) N/A
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) 3|5
- Typical Slew Rate (V/us) 0.03@5.5V
- Typical Voltage Gain (dB) 120
