NCP5220AMNR2

ProducentON SemiconductorEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP5220AMNR2_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP5220AMNR2

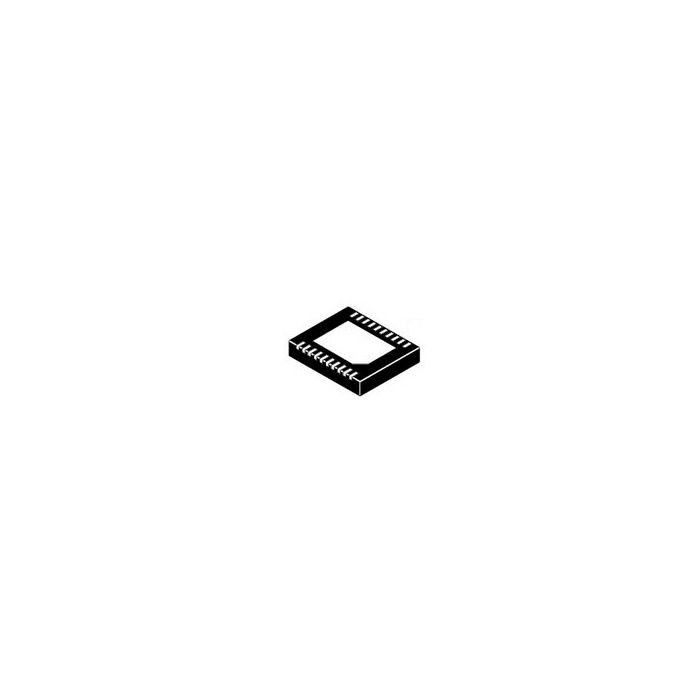

DC/DC Cntrlr Dual-OUT Step Down 566kHz 20-Pin DFN EP T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 923
  • Inventory 1*
  • PCNs 21
  • MaskPart NCP5220AMN%
  • IntroductionDate Nov 11, 2004
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP5220AMNR2&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Maximum Input Voltage (V) N/A
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) 25
  • Maximum Switching Frequency (kHz) 566
  • Minimum Input Voltage (V) N/A
  • Minimum Operating Temperature (°C) 0
  • Number of Outputs 2
  • Operating Supply Voltage (V) 4.5 to 5.5
  • Output Voltage (V) N/A
  • Supplier Temperature Grade Commercial
  • Topology Step Down
  • Typical Input Voltage (V) 5
  • Typical Output Current (A) N/A

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Dual-OUT Step Down 566kHz 20-Pin DFN EP T/R
