NCP5214AMNR2G

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP5214AMNR2G_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP5214AMNR2G

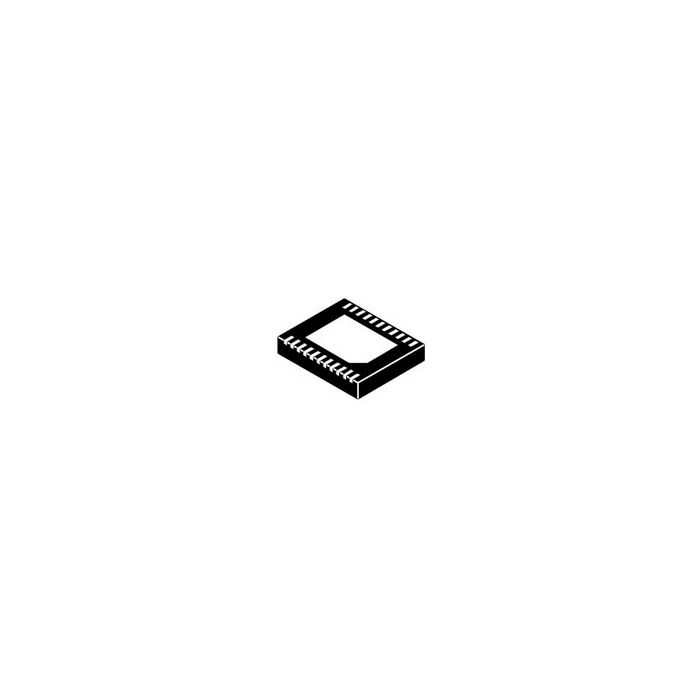

DC/DC Cntrlr Single-OUT Step Down 22-Pin DFN EP T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 275
  • Inventory 1
  • PCNs 22
  • MaskPart NCP5214AMN%G
  • IntroductionDate May 02, 2006
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP5214AMNR2G&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Control Method PWM
  • Maximum Input Voltage (V) 24
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) N/A
  • Maximum Switching Frequency (kHz) N/A
  • Minimum Input Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 5
  • Output Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Topology Step Down
  • Typical Input Voltage (V) N/A
  • Typical Output Current (A) 2.4
  • Typical Switching Frequency (kHz) 400

Więcej informacji

Do pobrania Download
Main description DC/DC Cntrlr Single-OUT Step Down 22-Pin DFN EP T/R
