NCP5030MTTXG

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP5030MTTXG_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP5030MTTXG

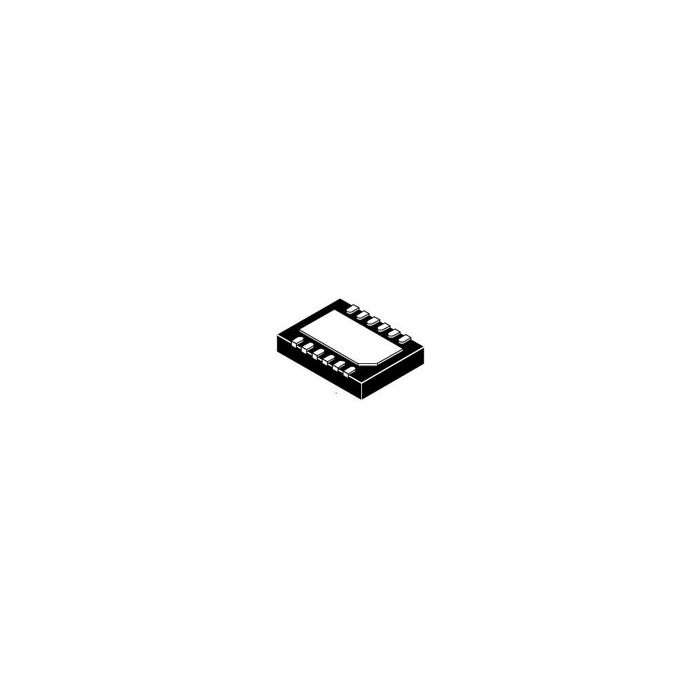

LED Driver 1 Segment 5000uA Supply Current 12-Pin WDFN T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 138
  • Inventory 8
  • PCNs 21
  • MaskPart NCP5030MT%XG
  • IntroductionDate Dec 14, 2006
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP5030MTTXG&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • High Level Output Current (uA) N/A
  • Low Level Output Current (uA) N/A
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (uA) 5000(Typ)
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Number of Digits N/A
  • Number of Segments 1
  • Operating Supply Voltage (V) 2.7 to 5.5
  • Output Voltage (V) 2.2 to 5.5
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description LED Driver 1 Segment 5000uA Supply Current 12-Pin WDFN T/R
