NCP451AFCT2G

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP451AFCT2G_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP451AFCT2G

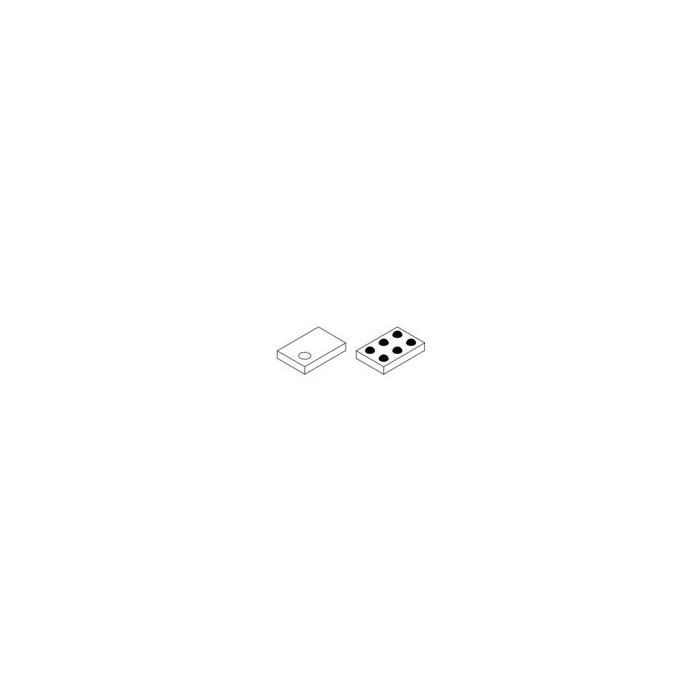

Power Switch Hi Side 1-OUT 3A 0.015Ohm 6-Pin WLCSP T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 31
  • Inventory 7
  • PCNs 18
  • MaskPart NCP451AFCT2G%
  • IntroductionDate May 15, 2014
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP451AFCT2G&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Interface Type N/A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 315(Typ)
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 0.75
  • Minimum Operating Temperature (°C) -40
  • Minimum Output Current (A) 3(Max)
  • Minimum Storage Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage Range (V) 0.75 to 5.5
  • Output Voltage Range (V) -0.3 to 7
  • Supplier Temperature Grade N/A
  • Supply Current (mA) N/A
  • Switch On Resistance (Ohm) 0.015
  • Type High Side

Więcej informacji

Do pobrania Download
Main description Power Switch Hi Side 1-OUT 3A 0.015Ohm 6-Pin WLCSP T/R
