NCP437FCT2G

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP437FCT2G_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP437FCT2G

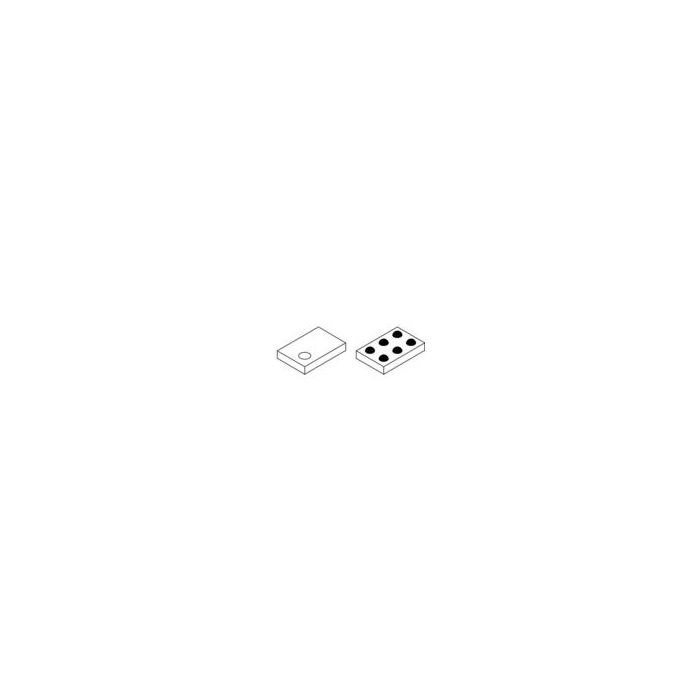

Power Switch Hi Side 1-OUT 3A 0.045Ohm 6-Pin WLCSP T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 16
  • Inventory 1
  • PCNs 21
  • GIDEP-Alerts 1
  • MaskPart NCP437FC%G
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP437FCT2G&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Interface Type N/A
  • Maximum Input Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 660
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 1
  • Minimum Operating Temperature (°C) -40
  • Minimum Output Current (A) 3(Max)
  • Minimum Storage Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage Range (V) 1 to 3.6
  • Output Voltage Range (V) N/A
  • Supplier Temperature Grade N/A
  • Supply Current (mA) N/A
  • Switch On Resistance (Ohm) 0.045
  • Type High Side

Więcej informacji

Do pobrania Download
Main description Power Switch Hi Side 1-OUT 3A 0.045Ohm 6-Pin WLCSP T/R
