NCP4306AADZZZAMN1TBG

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP4306AADZZZAMN1TBG_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP4306AADZZZAMN1TBG

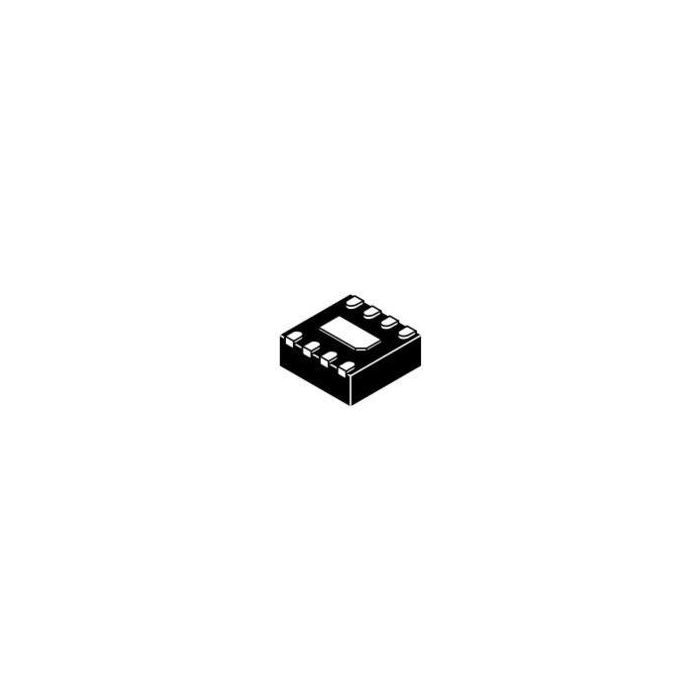

AC to DC Switching Converter Flyback 4.2V 1000kHz T/R 8-Pin DFN EP

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 101
  • Inventory 7
  • PCNs 18
  • MaskPart NCP4306AADZZZAMN1TBG%
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP4306AADZZZAMN1TBG&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Maximum Operating Current (mA) 12(Typ)
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Voltage (V) 35
  • Maximum Under Voltage Lock Out (V) 4.2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -60
  • Minimum Supply Voltage (V) N/A
  • Minimum Under Voltage Lock Out (V) 3.7
  • Soft Start Option No
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 1000
  • Topology Flyback
  • Typical Inrush Current (uA) N/A
  • Typical Under Voltage Lock Out (V) 4

Więcej informacji

Do pobrania Download
Main description AC to DC Switching Converter Flyback 4.2V 1000kHz T/R 8-Pin DFN EP
