NCP382LMN20AATXG

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP382LMN20AATXG_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP382LMN20AATXG

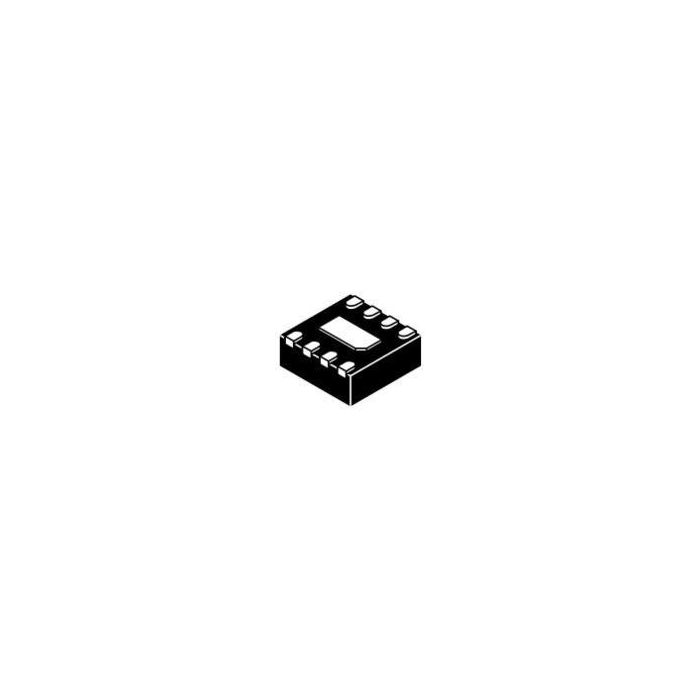

USB Power Switch Dual 5.5V 2A 8-Pin DFN EP T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 21
  • Inventory 1
  • PCNs 22
  • GIDEP-Alerts 1
  • MaskPart NCP382LMN20AATXG%
  • IntroductionDate Sep 01, 2010
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP382LMN20AATXG&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Current Limit (A) 2
  • Enable Logic Active Low
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 850(Min)
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Number of Switches 2
  • Supplier Temperature Grade N/A
  • Switch On Resistance (mOhm) 80
  • Type USB Power Switch
  • Typical Fall Time (us) 500(Max)
  • Typical Rise Time (us) 1000
  • Typical Turn-Off Delay Time (us) 3000(Max)
  • Typical Turn-On Delay Time (us) 3000(Max)
  • Typical UVLO Threshold (V) 2.35

Więcej informacji

Do pobrania Download
Main description USB Power Switch Dual 5.5V 2A 8-Pin DFN EP T/R
