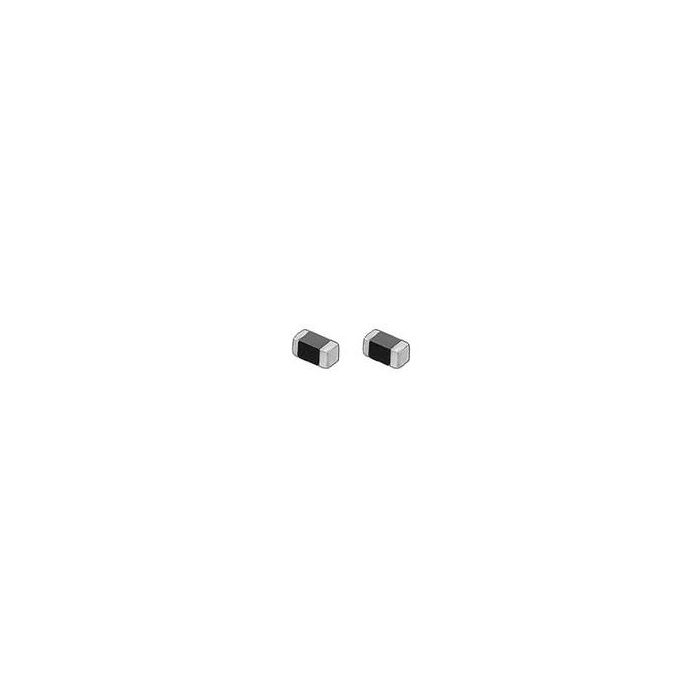

NCP18WM474J03RB
| Do pobrania | Download |
|---|---|
| Main description | Thermistor NTC 470K Ohm 5% 2-Pin 0603 Surface Mount Solder Pad 4582K T/R |
Thermistor NTC 470K Ohm 5% 2-Pin 0603 Surface Mount Solder Pad 4582K T/R
Informacje podstawowe
- ProducentMurata Manufacturing
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 44
- Inventory 7
- PCNs 12
- MaskPart NCP18WM474J03%
- IntroductionDate Jun 30, 2007
Parametry
- Accuracy N/A
- Application Temperature Compensation|Temperature Sensor
- Body Material N/A
- Construction Solder Pad
- Description of Terminals Leadless
- Maximum Output Resistance (Ohm) N/A
- Maximum Power Rating (W) 100m
- Maximum Storage Temperature (°C) 40
- Maximum Voltage Rating N/A
- Minimum Output Resistance (Ohm) N/A
- Minimum Storage Temperature (°C) -10
- Percentage of Resistance Tolerance @ 25C (%) ±5
- Percentage of Resistance Tolerance Range @ 25C (%) ±5 to ±10
- Resistance @ 25C (Ohm) 470000
- Resistance Range @ 25C (Ohm) >= 120000
- Response Point List N/A
- Sensitivity Index (K) 4582
- Sensitivity Index Range (K) >= 4550
- Supplier Temperature Grade N/A
- Thermal Coefficient N/A
- Thermal Coefficient Range N/A
- Thermal Time Constant (s) N/A
- Thermal Time Constant Range (s) N/A
- Type NTC
