NCP18WM224J03RB

Więcej informacji
Do pobrania Download

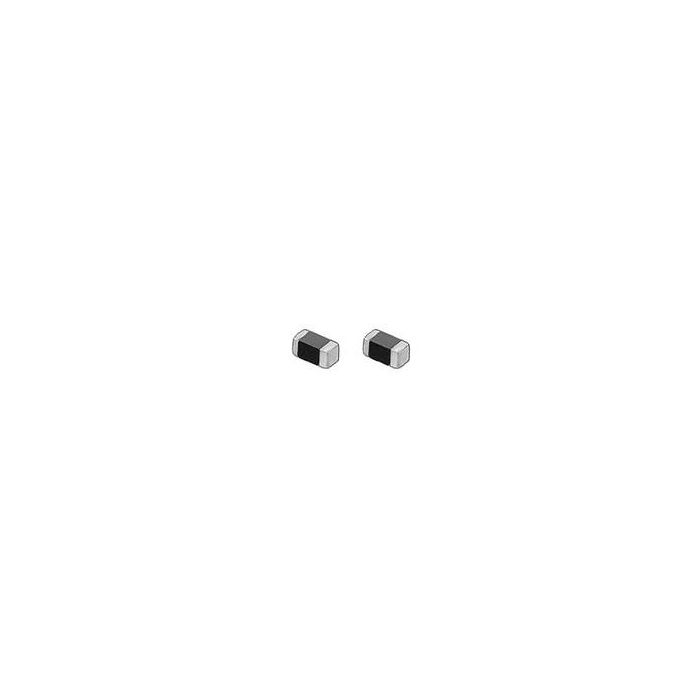

Main description Thermistor NTC 220K Ohm 5% 2-Pin 0603 Surface Mount Solder Pad 4582K T/R
Thermistor NTC 220K Ohm 5% 2-Pin 0603 Surface Mount Solder Pad 4582K T/R

Informacje podstawowe

  • ProducentMurata Manufacturing
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 42
  • Inventory 4
  • PCNs 10
  • MaskPart NCP18WM224J03%
  • IntroductionDate Jun 30, 2007

Parametry

  • Accuracy N/A
  • Application Temperature Compensation|Temperature Sensor
  • Body Material N/A
  • Construction Solder Pad
  • Description of Terminals Leadless
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Rating (W) 100m
  • Maximum Storage Temperature (°C) 40
  • Maximum Voltage Rating N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -10
  • Percentage of Resistance Tolerance @ 25C (%) ±5
  • Percentage of Resistance Tolerance Range @ 25C (%) ±5 to ±10
  • Resistance @ 25C (Ohm) 220000
  • Resistance Range @ 25C (Ohm) >= 120000
  • Sensitivity Index (K) 4582
  • Sensitivity Index Range (K) >= 4550
  • Supplier Temperature Grade N/A
  • Thermal Coefficient N/A
  • Thermal Coefficient Range N/A
  • Thermal Time Constant (s) N/A
  • Thermal Time Constant Range (s) N/A
  • Type NTC
