NCP1076P065G

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP1076P065G_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP1076P065G

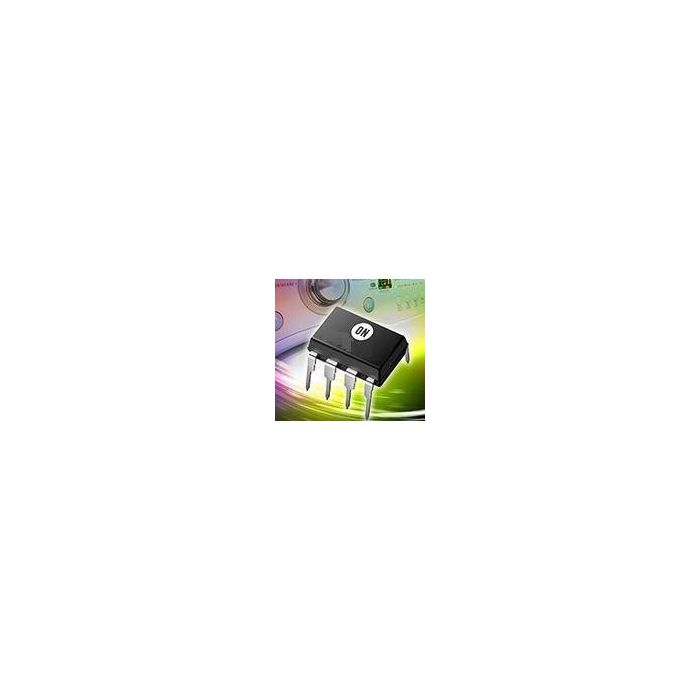

AC to DC Switching Converter Off-Line Switcher 6.6V 65kHz Tube 7-Pin PDIP

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 4
  • Inventory 7
  • PCNs 23
  • GIDEP-Alerts 2
  • MaskPart NCP1076P065G%
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP1076P065G&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Maximum Operating Current (mA) 1(Typ)
  • Maximum Operating Temperature (°C) 150
  • Maximum Output Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Voltage (V) 8.5
  • Maximum Under Voltage Lock Out (V) 6.6
  • Minimum Operating Temperature (°C) N/A
  • Minimum Storage Temperature (°C) -60
  • Minimum Supply Voltage (V) 7.7
  • Minimum Under Voltage Lock Out (V) 6.1
  • Soft Start Option Yes
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 65(Typ)
  • Topology Off-Line Switcher
  • Typical Inrush Current (uA) N/A
  • Typical Under Voltage Lock Out (V) 6.3

Więcej informacji

Do pobrania Download
Main description AC to DC Switching Converter Off-Line Switcher 6.6V 65kHz Tube 7-Pin PDIP
