NCP1060AP060G

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP1060AP060G_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP1060AP060G

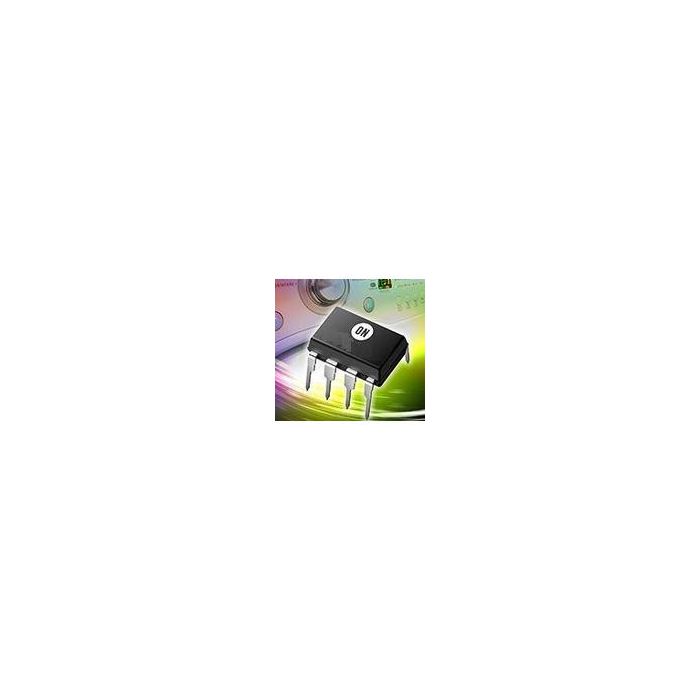

AC to DC Switching Converter Off-Line Switcher 7.2V 60kHz Tube 7-Pin PDIP

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 7
  • Inventory 6
  • PCNs 21
  • GIDEP-Alerts 1
  • MaskPart NCP1060AP060G%
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP1060AP060G&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Maximum Operating Current (mA) 0.92(Typ)
  • Maximum Operating Temperature (°C) 150
  • Maximum Output Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Voltage (V) 9.5
  • Maximum Under Voltage Lock Out (V) 7.2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -60
  • Minimum Supply Voltage (V) 8.4
  • Minimum Under Voltage Lock Out (V) 6.7
  • Soft Start Option Yes
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 60(Typ)
  • Topology Off-Line Switcher
  • Typical Inrush Current (uA) N/A
  • Typical Under Voltage Lock Out (V) 7

Więcej informacji

Do pobrania Download
Main description AC to DC Switching Converter Off-Line Switcher 7.2V 60kHz Tube 7-Pin PDIP
