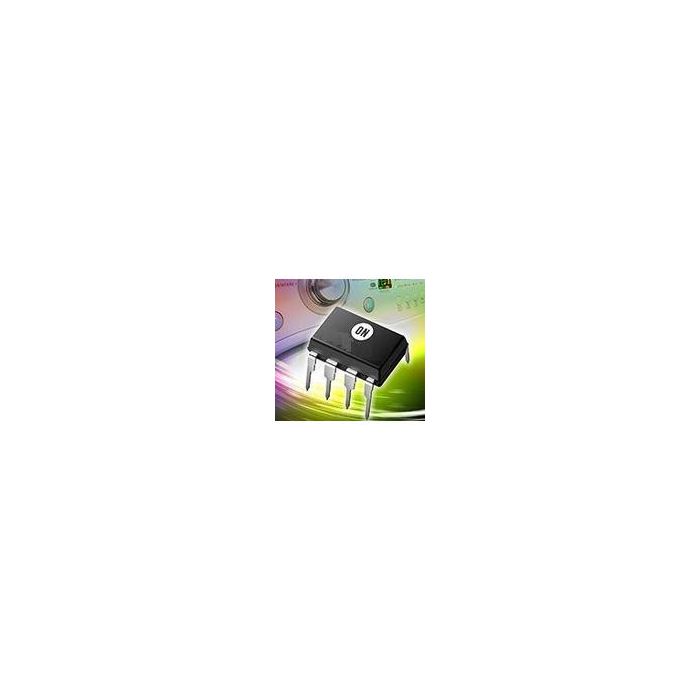

NCP1014AP100G

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP1014AP100G_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP1014AP100G

AC to DC Switching Converter Off-Line Switcher/SMPS Controller 100kHz Tube 7-Pin PDIP

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 12
  • Inventory 8
  • PCNs 29
  • GIDEP-Alerts 6
  • MaskPart NCP1014AP100G%
  • IntroductionDate Jul 01, 2003
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP1014AP100G&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Maximum Operating Current (mA) 0.95(Typ)
  • Maximum Operating Temperature (°C) 150
  • Maximum Output Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Voltage (V) 8.1
  • Maximum Under Voltage Lock Out (V) N/A
  • Minimum Operating Temperature (°C) N/A
  • Minimum Storage Temperature (°C) -65
  • Minimum Supply Voltage (V) 6.9
  • Minimum Under Voltage Lock Out (V) N/A
  • Soft Start Option Yes
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 100(Typ)
  • Topology Off-Line Switcher|SMPS Controller
  • Typical Inrush Current (uA) N/A
  • Typical Under Voltage Lock Out (V) N/A

Więcej informacji

Do pobrania Download
Main description AC to DC Switching Converter Off-Line Switcher/SMPS Controller 100kHz Tube 7-Pin PDIP
