NCP100SNT1G

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NCP100SNT1G_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NCP100SNT1G

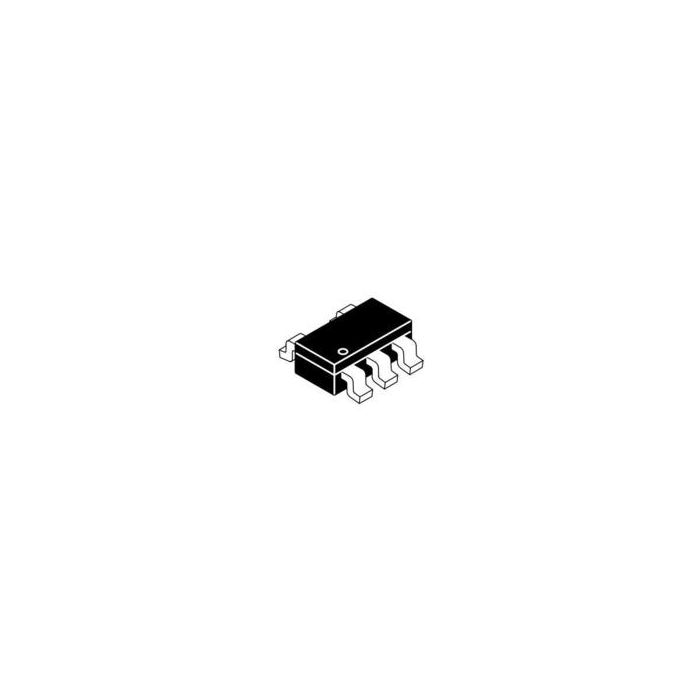

V-Ref Adjustable 0.9V to 6V 20mA 5-Pin TSOP T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 167
  • PCNs 21
  • MaskPart NCP100SN%G
  • IntroductionDate Jul 25, 2000
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NCP100SNT1G&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Initial Accuracy 1.7%
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 7
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) 20
  • Maximum Storage Temperature (°C) 150
  • Maximum Temperature Coefficient N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Output Voltage (V) 0.9 to 6
  • Reference Type Adjustable
  • Supplier Temperature Grade N/A
  • Topology Shunt

Więcej informacji

Do pobrania Download
Main description V-Ref Adjustable 0.9V to 6V 20mA 5-Pin TSOP T/R
