NC7SZD384M5X/8Z40

ProducentON SemiconductorEURoHSUnknown (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NC7SZD384M5X_8Z40_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NC7SZD384M5X/8Z40

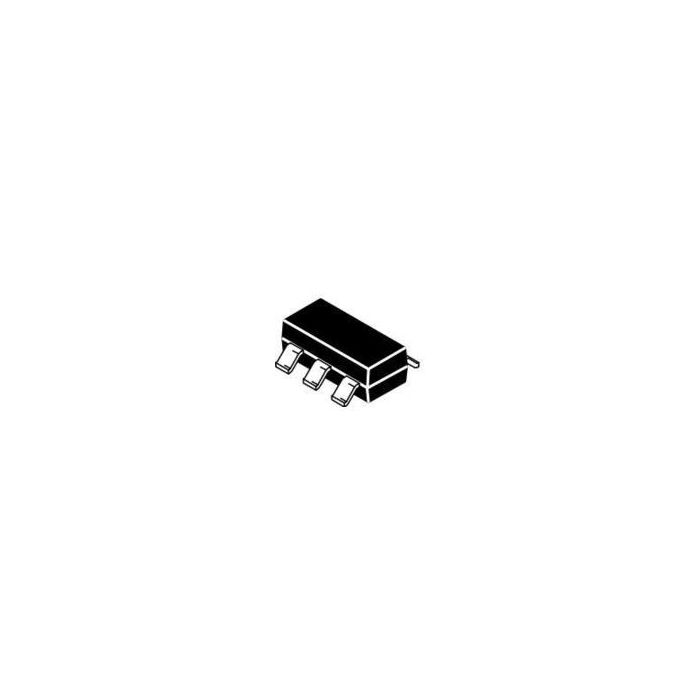

Bus Switch 1-Element 1-IN 5-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSUnknown (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 11
  • PCNs 19
  • MaskPart NC7SZD384M5X8Z40%
  • IntroductionDate Nov 27, 2000
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NC7SZD384M5X/8Z40&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Absolute Propagation Delay Time (ns) 7.5
  • Configuration 1 x 1:1
  • Logic Family N/A
  • Logic Function Bus Switch
  • Maximum High Level Output Current (mA) N/A
  • Maximum Low Level Output Current (mA) 128
  • Maximum On Resistance (Ohm) 35(Typ)
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 200
  • Maximum Propagation Delay Time @ Maximum CL (ns) 0.25@4.5V to 5.5V
  • Maximum Quiescent Current (uA) 1500
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 1
  • Number of Inputs per Chip 1
  • Number of Outputs per Chip 1
  • Process Technology N/A
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 5
  • Typical Quiescent Current (uA) 800
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Bus Switch 1-Element 1-IN 5-Pin SOT-23 T/R
