NC7SZ384M5_NL
Do pobrania | Download |
---|---|
Main description | Bus Switch 1-Element 1-IN 5-Pin SOT-23 T/R |

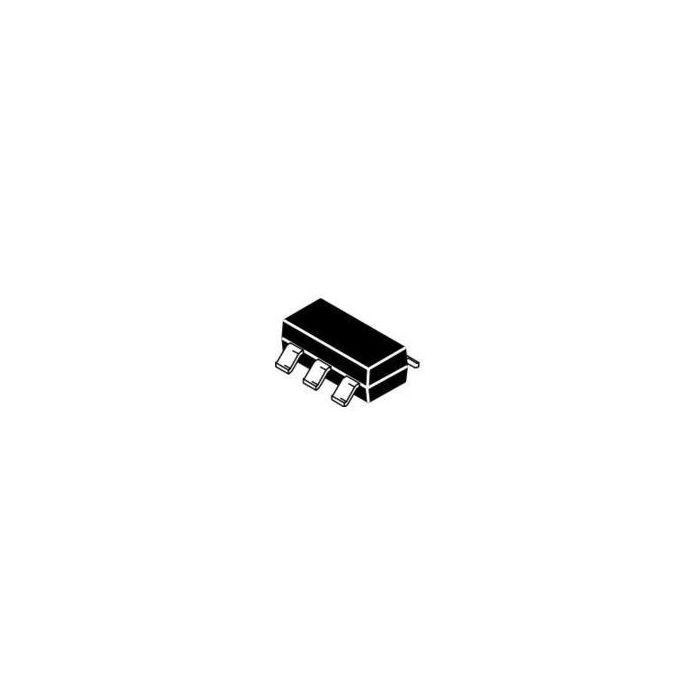

Bus Switch 1-Element 1-IN 5-Pin SOT-23 T/R
Informacje podstawowe
- ProducentON Semiconductor
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 17
- PCNs 23
- MaskPart NC7SZ384M5NL%
- IntroductionDate Nov 27, 2000
- SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NC7SZ384M5_NL&tabbed=Y&clearFilters=Y&searchType=others
Parametry
- Absolute Propagation Delay Time (ns) 5.5
- Configuration 1 x 1:1
- Logic Family N/A
- Logic Function Bus Switch
- Maximum High Level Output Current (mA) N/A
- Maximum Low Level Output Current (mA) 128
- Maximum On Resistance (Ohm) 20
- Maximum Power Dissipation (mW) 200
- Maximum Propagation Delay Time @ Maximum CL (ns) 0.25@4V to 5.5V
- Maximum Quiescent Current (uA) 10
- Maximum Supply Current (mA) N/A
- Number of Elements per Chip 1
- Number of Inputs per Chip 1
- Number of Outputs per Chip 1
- Process Technology N/A
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade N/A
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
