NC7S14M5X

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
NC7S14M5X_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / NC7S14M5X

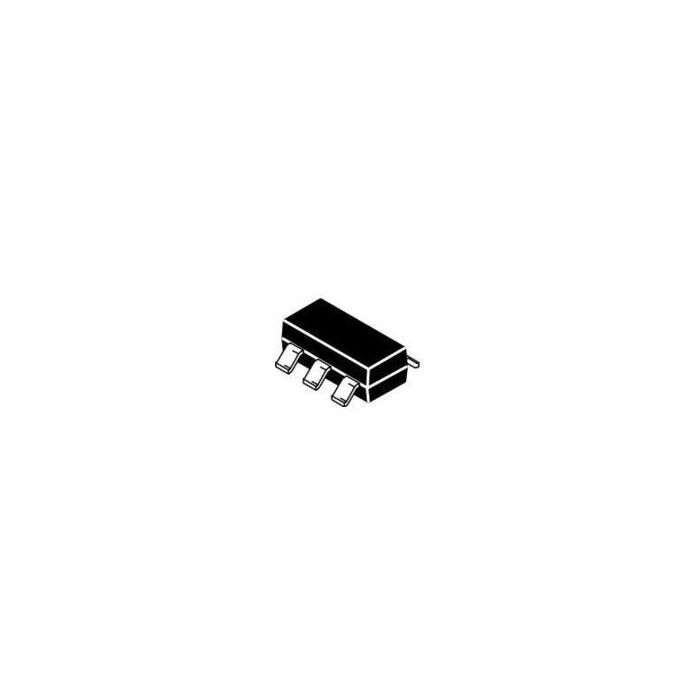

Inverter Schmitt Trigger 1-Element CMOS 5-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 46
  • Inventory 11
  • PCNs 41
  • GIDEP-Alerts 3
  • MaskPart NC7S14M5%
  • IntroductionDate Jun 21, 2000
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NC7S14M5X&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Absolute Propagation Delay Time (ns) 125
  • Input Type Schmitt Trigger
  • Logic Family TinyLogic HS
  • Logic Function Inverter Schmitt Trigger
  • Maximum High Level Output Current (mA) -2.6
  • Maximum Low Level Output Current (mA) 2.6
  • Maximum Low Level Output Voltage (V) 0.26
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 85
  • Maximum Propagation Delay Time @ Maximum CL (ns) 100@2V|27@3V|20@4.5V|17@6V
  • Maximum Quiescent Current (uA) 1
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Test Temperature (°C) N/A
  • Minimum High Level Output Voltage (V) 1.9
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Minimum Test Temperature (°C) N/A
  • Number of Elements per Chip 1
  • Output Type Schmitt Trigger
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Inverter Schmitt Trigger 1-Element CMOS 5-Pin SOT-23 T/R
