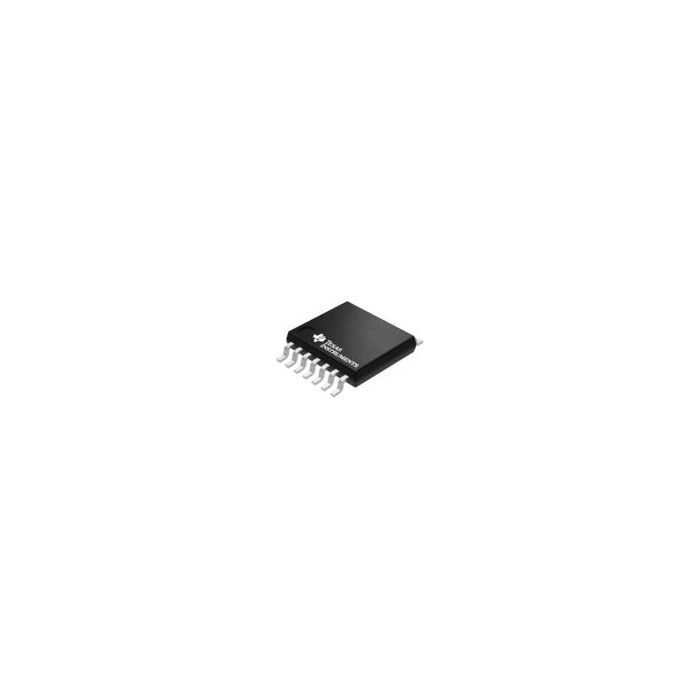

MSP430F2011IPWR
| Do pobrania | Download |
|---|---|
| Main description | MCU 16-bit MSP430 RISC 2KB Flash 2.5V/3.3V 14-Pin TSSOP T/R |
MCU 16-bit MSP430 RISC 2KB Flash 2.5V/3.3V 14-Pin TSSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 7
- Inventory 3
- PCNs 50
- MaskPart MSP430F2011IPW%
- IntroductionDate Aug 30, 2005
Parametry
- ADC Channels N/A
- ADC Resolution (bit) N/A
- Analog Comparators 1
- CAN 0
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 16
- Data Memory Size N/A
- Device Core MSP430
- Display Driver N/A
- Ethernet 0
- Family Name MSP430
- I2C 1
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 16
- Maximum Clock Rate (MHz) 16
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -55
- Number of ADCs N/A
- Number of DACs N/A
- Number of Programmable I/Os 10
- Number of Timers 1
- PWM 1
- Program Memory Size 2KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 128B
- SPI 1
- Special Features N/A
- Temperature Flag Opr
- UART 0
- USART 0
- USB 0
- Watchdog 1
