MRF8P9040GNR1
| Do pobrania | Download |
|---|---|

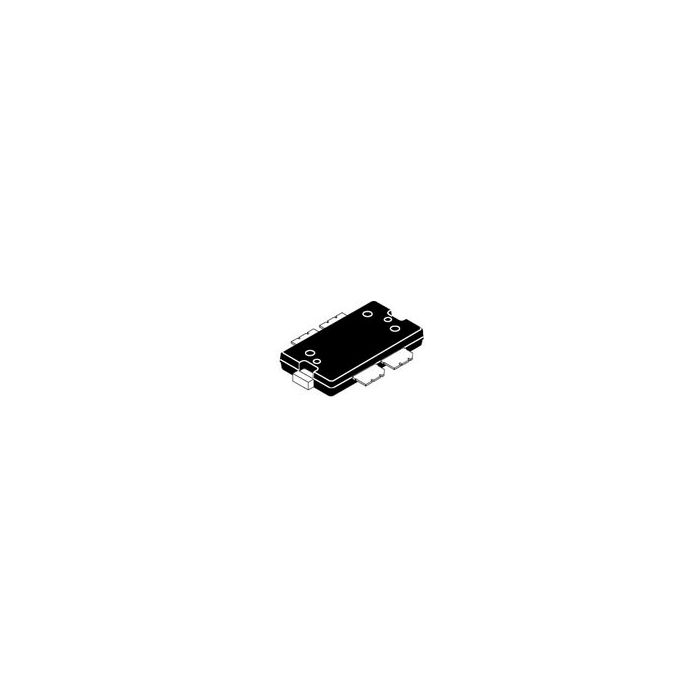

| Main description | Trans RF MOSFET N-CH 70V 5-Pin TO-270 W GULL T/R |
Trans RF MOSFET N-CH 70V 5-Pin TO-270 W GULL T/R
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Inventory 1
- PCNs 13
- MaskPart MRF8P9040GN%
- IntroductionDate Oct 15, 2010
Parametry
- Channel Mode Enhancement
- Channel Type N
- Configuration N/A
- Material N/A
- Maximum Continuous Drain Current (A) N/A
- Maximum Drain Source Resistance (mOhm) N/A
- Maximum Drain Source Voltage (V) 70
- Maximum Frequency (MHz) 1000
- Maximum Gate Source Voltage (V) 10
- Maximum Noise Figure (dB) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Maximum VSWR 10
- Minimum Frequency (MHz) 700
- Minimum Storage Temperature (°C) -65
- Mode of Operation 1-Carrier W-CDMA
- Number of Elements per Chip 2
- Output Power (W) 42(Typ)
- Supplier Temperature Grade N/A
- Types of Output Stages N/A
- Typical Drain Efficiency (%) 19.9
- Typical Fall Time (ns) N/A
- Typical Forward Transconductance (S) N/A
- Typical Gate Charge @ 10V (nC) N/A
- Typical Gate Charge @ Vgs (nC) N/A
- Typical Input Capacitance @ Vds (pF) N/A
- Typical Output Capacitance @ Vds (pF) N/A
- Typical Power Gain (dB) 19.1
- Typical Power Gain @ Vds (dB) 19.1
- Typical Reverse Transfer Capacitance @ Vds (pF) N/A
- Typical Rise Time (ns) N/A
- Typical Turn-Off Delay Time (ns) N/A
- Typical Turn-On Delay Time (ns) N/A
