MRF134

ProducentMACOMEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MRF134_MACOM
material
N/A
0,00 zł

Zapytaj o ten produkt

Opis / MRF134

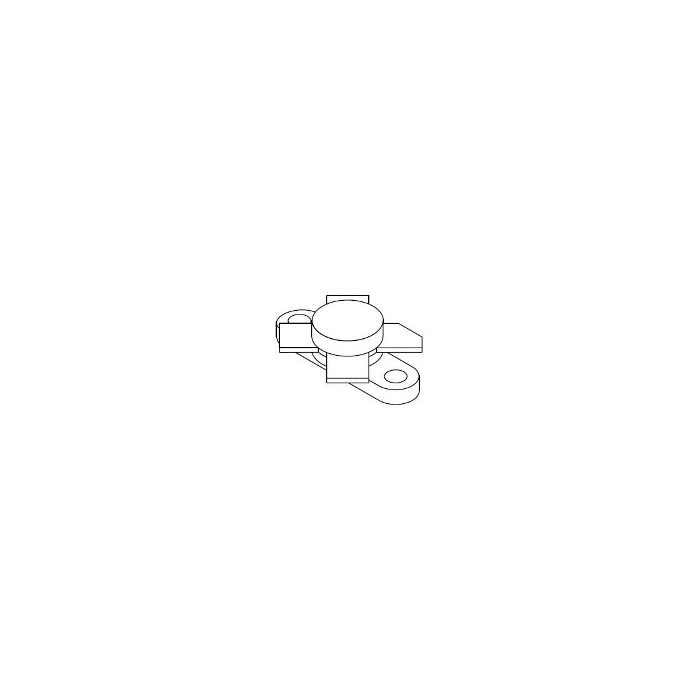

Trans RF MOSFET N-CH 65V 0.9A 4-Pin Case 211-07

Informacje podstawowe

  • ProducentMACOM
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 3
  • PCNs 11
  • MaskPart MRF134%
  • IntroductionDate May 20, 2009
  • EnablingEnergyEfficiency No

Parametry

  • Channel Mode Enhancement
  • Channel Type N
  • Configuration Single Dual Source
  • Material N/A
  • Maximum Continuous Drain Current (A) 0.9
  • Maximum Drain Source Resistance (mOhm) N/A
  • Maximum Drain Source Voltage (V) 65
  • Maximum Frequency (MHz) 400
  • Maximum Gate Source Voltage (V) ±40
  • Maximum Noise Figure (dB) 2(Typ)
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) 17500
  • Maximum VSWR 30
  • Minimum Frequency (MHz) N/A
  • Minimum Operating Temperature (°C) -65
  • Mode of Operation N/A
  • Number of Elements per Chip 1
  • Output Power (W) 5
  • Supplier Temperature Grade N/A
  • Types of Output Stages Single Ended
  • Typical Drain Efficiency (%) 55
  • Typical Fall Time (ns) N/A
  • Typical Gate Charge @ 10V (nC) N/A
  • Typical Gate Charge @ Vgs (nC) N/A
  • Typical Input Capacitance @ Vds (pF) 7@28V
  • Typical Power Gain (dB) 14
  • Typical Power Gain @ Vds (dB) 14
  • Typical Rise Time (ns) N/A
  • Typical Turn-Off Delay Time (ns) N/A
  • Typical Turn-On Delay Time (ns) N/A

Więcej informacji

Do pobrania Download
Main description Trans RF MOSFET N-CH 65V 0.9A 4-Pin Case 211-07
